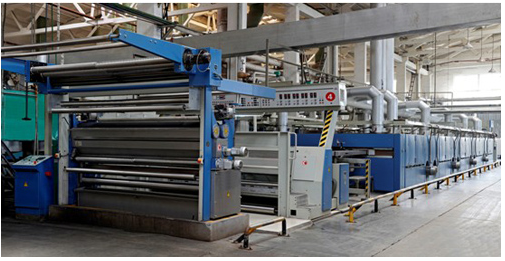

新昌日利RLYR6001- I热风拉幅定型机

RLYR6001-I系列热风拉幅定型机采用铸造成型轨道、加油润滑，适用于真丝、毛麻、棉、化纤等机织物的拉幅和热定型。
　　本机采用交流变频技术，PLC控制变频同步调速，实现了各主动单元同步精确和主要工艺参数在线监控。故障显示功能可以让用户及时、准确地排除故障，以达到最少的停机时间，创造最大的生产效益。
　　RLYR6001-I series stenter mashine is applicable to tentering and hotsetting of the machine-woven fabrics of naturics of natural silk,cotton ,wool and jute,etc.
　　This machine applies an AC frequency-conversion technique and PLC to have an in-process supervision and control for a precise synchronous movement of every active element and over the main techchnological parameters.Its abnormal problems timely and precisely,therefore,to minimize the machine stop time and maximize the production efficiency.

设备流程：
　　平幅进布→紧布架→平移（扩福）对中→二辊斜轧车→张力传感装置→圆盘整纬→平移对中→下超喂→机械整纬→螺纹扩福→上超喂→剥边→红外探边→毛刷上针&r

Working procedure of the equipment：
　　Open width fabric-infeeding→fabric tensioner→translation(expander) centering→two-rollmangling machine→tension sensor device→disc straightener→traighlation centering→lower overfeed→mechanical straightener→spiral expabder→upper over-feed→rip-off selvedge→ultrared rayedge detector→rip-off upper needles→heat-setting→cold air cooling→fabric-swinng collection or rolling-collection

该机器在2011第十五届上海国际纺织工业展展出

技术参数：
　　◆车别：左手或右手

◆公称门幅：2000~3600mm

◆有效门幅：1800~(w-200)mm

◆设计车速：Max.110m/min

◆传动方式：多单元交流电机变频器同步调速传动，出布区电视监控，触摸屏电脑控制工艺参数。

◆超喂量：上针超喂调整调整范围大（-10%~+60%）,适合各种织物的不同超喂率，左右布边张力可分别设定。

◆持布方式：针铗/布铗

◆烘房温度：220゜C（max）

◆压缩空气压力：0.4-0.5MPa

◆外形尺寸：长（20520+N×3000）mm/宽（W+2200）

◆装机容量：（N×15+57.37）kw（标准配置）

◆热源：载热油/天燃气/电

◆能源消耗：100万大卡

注：N为烘房数量，W为门幅宽度

Technical specification：

◆Machine type:left hand or right hand

◆Nominal width:2000～3600mm

◆Effective width:1800～(w-200)mm

◆Designed running speed:Max.110m/min

◆Way oftransmission:Synchronous speed-regulateable tansmisson by AC motor and frequency converter.TV monitoring for the fabric-out area.The finger-touch screen for a computerzed technological parameter control.

◆Over-feed amount:Big adjustment range for the upper needle overfeed (-10%to+60%),applicable to whatever kind fabric with different over-feed rates.The lefe and right fabric edgetensions can be set respectively.

◆Fblic holding method:Needle clip/fabric clip/needle-fabric bipurpose clip

◆Drying tunnel temperature:220゜C(max)

◆Compressed air pressure 0.4-0.5

◆Outside dimension:L(17606+N×3000)mm/W(W+2200)mm/H4000 mm

◆Insatallation capacity:(N×15+57.37)kw

◆Heat source:Thermal conductve oil/natural gas/electricity

◆Energy consumption:1million kilocalorie

Note:N is the drying tunnel number.W is the fabric width.

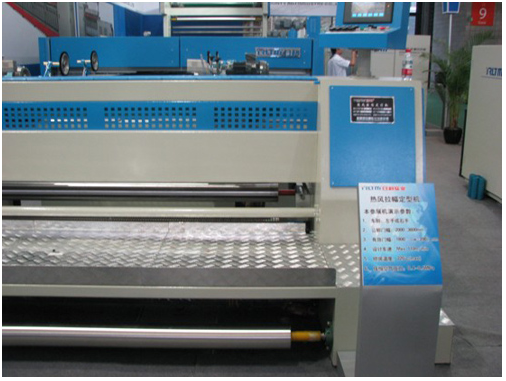

展台照片：
