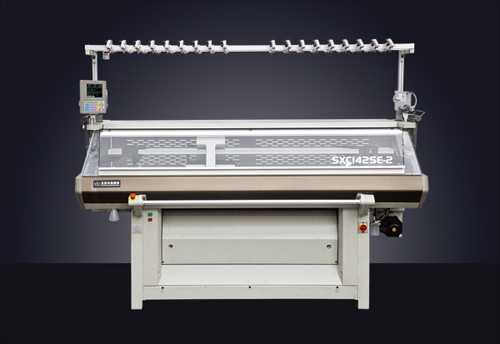

盛星电脑横机 SXC142SE-2

TYPE     SXC142SE-2
GAUGE     3.5.7(multi-gauge)、5、7、8、10、12、14 G
Knitting Width       Variable stroke Max.56Inch (142cm)
Knitting speed      Max 1.2m/sec.
Stitch density     Controlled by stepping motor, 24 section stitch selectable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Racking     Motor-driven racking mechanism Max 2 inch,1/2 and 1/4 pitch also available from any position
Knitting system      Double Knitsystem
Transfer     The transfer is compose designed, single cam system an other cam system for knitting which   will achieve to high production efficiency knit.
Sinker system      Spring-type moveable full-sinker system.  Fixed sinker system.
Needle selection      Full jacquard selection via special solenoid actuators.
Setup device     Takedown comb with special setup needles.
Takedown device     Main roller. Changeable 99 levels, automatically adjustable on each level. Automatic opening and closing.
Yarn cutter     Single-unit system includes 1 yarn cutter and 2 yarn grippers. Left and right side standard.
Side tensions      8 on each side
Yarn carriers     16 normal carriers
Top tensions     18 tension devices.
Stop motion     Yarn break, large knot, wraparound check, shock detection, piece count, over-troque, program error,etc.
Drive system      Belt drive. AC servo motor. No lubrication necessary.
Safety devices     Full safety cover for noise-suppression and dust-proofing with stop motion sensor and interlock mechanism. Stop button. Power supply disconnecting device.
Ultra-low speed "crawl" setting.  Indicator lamps (see below).
Operation lamp      Green/normal operation. Yellow/normal stop. Red/abnormail stop.
