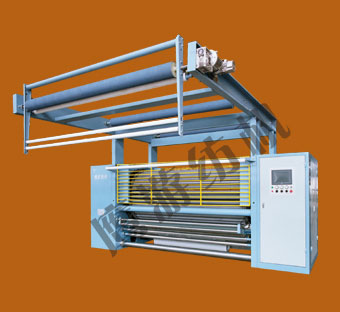

MB331E起毛机

来源：连云港鹰游纺机有限责任公司  发布时间:2011-57-26

产品用途及主要技术参数

1.24辊起毛机适用于各类毛毯、呢绒织物、针织物、机织长丝及其混纺织物的起毛.
         36辊起毛机适于棉、毛织物及混纺织的起毛.
         2.幅宽：2000mm  2200mm  2500mm　2800mm  3200mm　
         3.起毛罗拉数量：24、36
         4.锡林直径：φ750mm   φ1120mm
         5.工作速度：5-30m/min
         6.锡林速度：60-90rpm
         7.操作方式：触摸屏控制
         8.装机功率：24.5KW 33.5KW

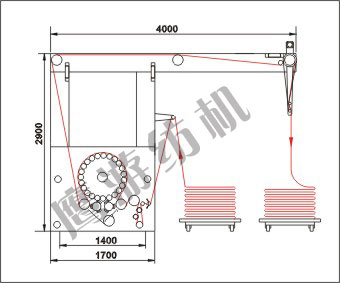

         9.外形尺寸：(长X宽X高) 4000X 4000X 3045（mm）(幅宽2000mm)

USES AND MAIN TECHNICAL PARAMETERS

        1、Raising machine with 24 pieces raising rollers  is suitable for raising of all kinds of blankets,
               woolfabrics, knitted fabrics, and their blended  fabrics. The raising machine with 36 raising
               rollers is suitable for the raising of cotton, woolen fab rics, and their blended  fabrics.
         2、Working width：2000mm    2200mm     2500mm   2800mm   3200mm
         3、Raising roller quantity：24    36
         4、The diameter of cylinder：φ750mm  φ1120mm
         5、Working speed：5~30m/min
         6、The rotatonal speed of cylinder：60~90rpm
         7、The style of operation：controlled by touching screen
         8、Total motor power：24.5kw  33.5kw
         9、Overall dimensions：( length * width * height )
            4000 * 4000 * 3045(mm)(working width 2000mm)
