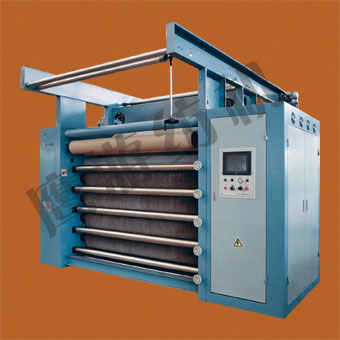

MB342G混合磨毛机

来源：连云港鹰游纺机有限责任公司  发布时间:2011-49-26

产品用途及主要技术参数
         1、MB342G是新一代混合式磨毛机，采用立式分布，砂皮辊与碳刷辊任意互换。该设备具有适应范围宽、
                除尘效果好、自动化程度高、张力稳定、操作维护简便等优点。
         2、公称幅宽：1800~3400mm
         3、装机功率：65KW (不含风机)
         4、机械车速：5~45m/min
         5、磨辊直径：砂皮辊：φ215      碳刷辊：φ280
         6、磨辊转速：500~2000 rpm（变频）
         7、气压消耗：6Kg   100L/min
         8、机器重量：6~8吨

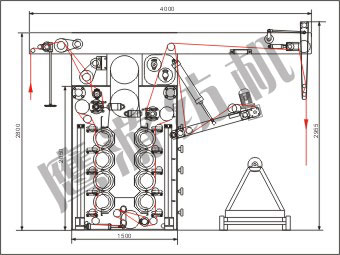

         9、机器外形尺寸（长X宽X高）：4000X（3800）X2955（幅宽2000mm）

USES AND MAIN TECHNICAL PARAMETERS
         1、MB342G Sueding machine is a new type sueding machine, its structure is vertical,
               the emerying rollers and carbon-rollers can be combined freely.
               This machine has a widen use range, good suction result, high automatization,
               stable tension and convenient operation.
         2、Working width: 1800~3400mm
         3、Installation power: 65KW (suction fan is not included)
         4、Working speed: 5~45m/min
         5、The diameter of emerying roller: φ215  The diameter of carbon-roller: φ280
         6、The rotary speed of sueding roller : 500~2000 rpm (inverter control)
         7、Air pressure: 6Kg   100L/min
         8、Machine weight: 6~8 T
         9、Overall dimensions : 4000*(3800)*2955（working width: 2000mm）
