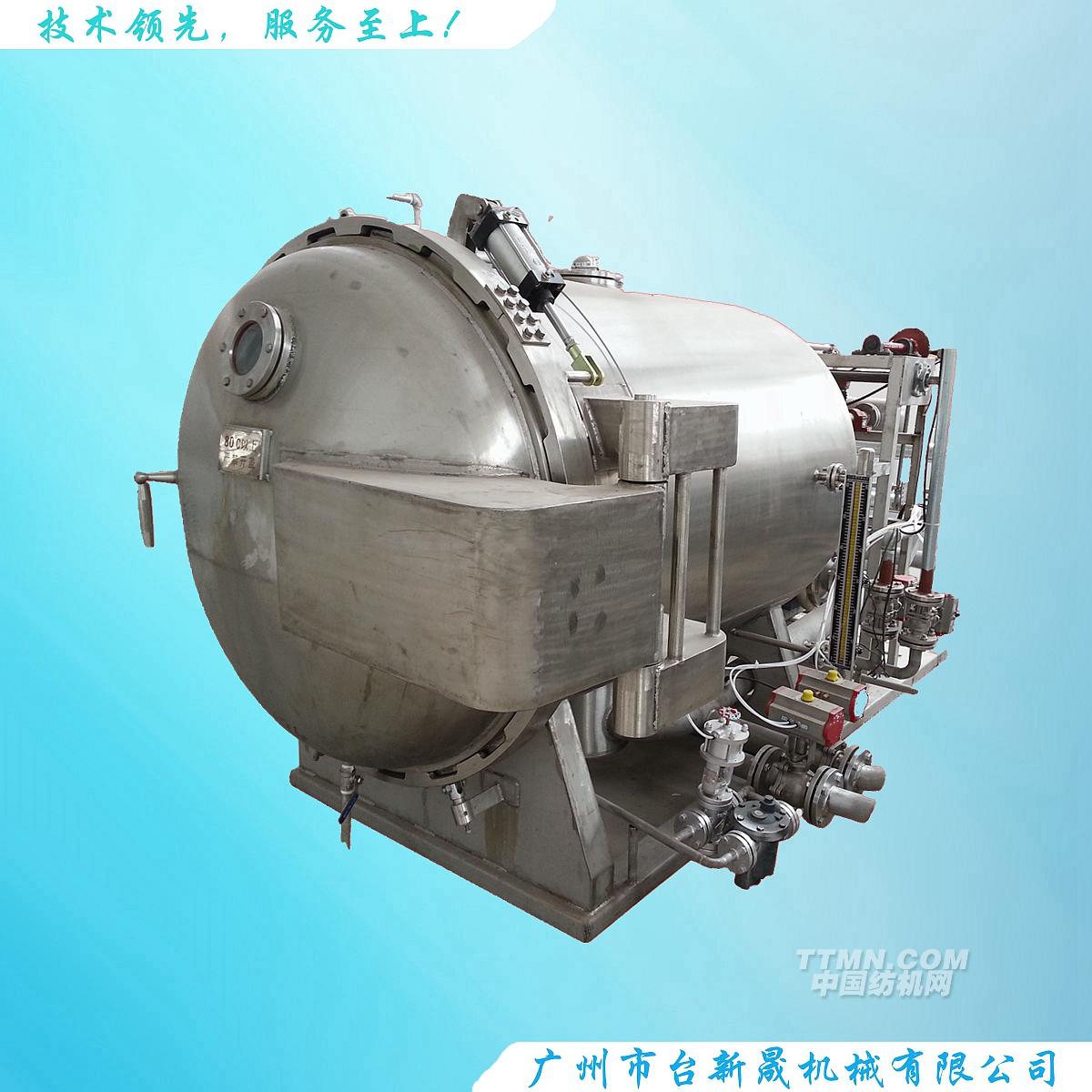

高温高压染色机

发布时间:2017-05-21

拉链染色机 TS-TZD

Zipper dyeing machine



适用于染纯棉、涤棉、涤毛、晴纶、尼龙、麻棉、羊毛等各种纤维,配合各种类型纱架,可染不同织物,如筒子纱、绞纱、经轴纱、拉链、粘扣带、网布和散毛等,染色、精炼、漂白后处理。

This machine is suitable for dyeing of various kinds of fibers such as cotton, polyester cotton, polyester , nylon, wool and so on. Using different kinds of creels it is capable of dyeing various yarns, such as cheese, hank, yarn on warp beam, loose wool, etc., dyeing, refining, bleaching after treatment.

  技术特点 Features

   1. 低浴比设计,节省染料、助剂和能源,减少排污量,提高经济效益

Low liquor bath than the design, saving dyes, additives and energy, reduce emissions, improve economic efficiency.



  2. 采用新型混流泵或不锈钢离心泵,具有高效能、高效率且低能耗,解决了传统混流泵扬程偏低的问题

The use of new mixed-flow pump or stainless steel centrifugal pump, with high efficiency, high efficiency and low energy consumption, to solve the traditional low-flow pump head problem.



  3. 流量控制系统:可根据各类纱线的需要作流量的无级调节控制,如采用变频驱动主泵配备自动感应器随时调节流量和水压,使染色效果达到完美

Flow control system: According to the needs of various types of yarn flow control stepless adjustment, such as the use of variable frequency drive the main pump with automatic sensor at any time to adjust the flow and water pressure, so that the dyeing effect to perfect.



  4. 先进的全自动化控制系统:控制箱采用全自动或半自动型式,专为染色机设计的电脑控制器可同时显示温度曲线、步骤和输出,可进行温度控制曲线加料、速度控制等;全自动控制进水、排水、升温、恒温、降温及清洗等染色工艺要求,可连接中央集中控制系统,操作简便

Advanced automatic control system: control box with automatic or semi-automatic type, designed specifically for the dyeing machine computer controller can display the temperature curve, steps and output, can be temperature control curve feeding, speed control, etc .; automatic control into Water, drainage, heating, temperature, cooling and cleaning dyeing process requirements, can be connected to the central centralized control system, easy to operate.



   5. 快速的清洗系统,有效地节省了清洗时间和用水量

Fast cleaning system, effectively saving the cleaning time and water consumption.





  6. 快速进水、排水功能,在重复的染色加工中节省加工时间

Quick fill, drain function, in the repeated dyeing processing to save processing time.



   7. 溢流式加料系统,可进行动态化料,有效地控制加料的速率和量,保证均匀的上染率

Overflow feed system, can be dynamic material, effectively control the rate of feeding to ensure a uniform dyeing rate.







标准配置  Standard configuration



1. 染缸和所有与染液接触部分均采用优质、高级、抗腐蚀不锈钢制造

Main tank and all dyeing liquid contact part is made of high quality, advanced,corrosion resistant stainless steel manufacturing.



   2. 垂直式缸体,配备平衡重锤开关缸盖及手动控制缸锁,并配备安全联锁装置。

Vertical cylinder, equipped with balanced hammer switch cylinder head and manual control cylinder lock, and equipped with safety interlock device.



   3. 高精度感测水位控制系统

High - precision sensing water level control system.



  4. 敞开式加料桶配辅加料系统,平衡(回流)系统

Open-type feeding bucket with auxiliary feeding system, balanced (reflow) system.



   5. 结构紧凑的液流换向器及流向转向自动控制系统。

Compact flow commutator and flow steering automatic control system.



6. 新颖高效的管道外置式热交换器。

Innovative and efficient piping external heat exchangers.



7. 标准小盘头拉链管规格:Φ180*800(mm),每支拉链管载量按8-10Kg计算。

Standard small zipper bobbin specifications: Φ180 * 800 (mm), each zipper bobbin can be loaded 8-10Kg.

8. 标准大盘头拉链管规格:Φ400*1000(mm),每支拉链管载量按60Kg计算。

Standard big zipper bobbin specifications: Φ400*1000(mm), each zipper bobbin can be loaded 60Kg.

技术参数 Parameter

型号

Model

拉链管规格Bobbin size

(MM)

拉链管数量Bobbin

 QUTY

载量

Capacity

(Kg)

主泵功率

Pump power

(Kw)

主缸规格 Main tankmm)

起吊高度

Lifting height

直径

DIA

Long

Wide

High

TS-TZD-5

Φ180×400L

1

3-5

2.2

250

880

1050

1450

-

TS-TZD-10

Φ180×800L

1

10

3

250

880

1050

1850

-

TS-TZD-30

Φ180×800L

3

30

5.5

450

980

1100

1925

2750

TS-TZD-40

Φ180×800L

4

40

5.5

500

1080

1130

1972

2800

TS-TZD-60

Φ180×800L

6

60

7.5

600

1180

1250

2200

3000

TS-TZD-80

Φ180×800L

8

80

11

700

2200

1440

2341

3200

TS-TZD-140

Φ180×800L

14

140

15

900

2300

1680

2452

3400

TS-TZD-230

Φ180×800L

23

230

22

1200

2500

1890

2600

3800

TS-TZD-400

Φ180×800L

40

400

37

1400

2600

2220

2850

4000

TS-TZD-520

Φ180×800L

52

520

55

1600

2800

2470

3100

4500

TS-TZD-60

Φ400×1000L

1

60

7.5

450

980

1100

1925

2750

TS-TZD-180

Φ400×1000L

3

180

18.5

950

2300

1780

2552

3400

TS-TZD-240

Φ400×1000L

4

240

22

1050

2400

1890

2600

3800

TS-TZD-420

Φ400×1000L

7

420

37

1300

2550

2220

2850

4000

TS-TZD-780

Φ400×1000L

13

780

75

1800

2800

2500

2950

4100

TS-TZD-1020

Φ400×1000L

17

1020

90

2000

2800

3020

3280

4500
