平面液压裁断机

该产品适用于皮革，塑胶，尼龙，布料，纸板、泡棉及合成纤维、非金属材料的成型裁断作业，
特别适用于宽幅材料的一层或多层材料的冲裁落料。
操作省力、简单、故障率低，裁断力强，裁断速度快。
主轴设有自动润滑轴承，减少磨损，延长使用寿命。
刀模设定简单，高低刀模调整方便，准确快速。

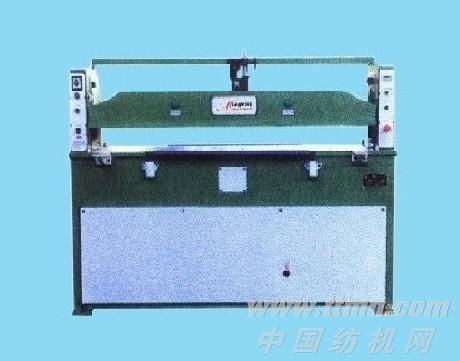

MX-825 液压平面裁断机
Smooth Hydraulic Pressure Powered Cutting Machine
Use and Characteristics:
1. It is used to scissor up plastic nylon paper carton sponge and synthetic fibers， in particular it is suitable to cut single layer to multilayer broad with material.
2. Operation is simple safe scissoring speed.
3. Main shaft is equipped with a lubricating system to lessen wear and prolong service life.
4. Knife position can be set simply and be adjusted conveniently and quickly.
Main Technical Specification
Model number: MX-825
Max scissoring force: 250KN
Stroke adjustment: 10-100mm
Distance between pressing board and table: 50-150mm
Table area: 1600*600mm
Motor power: 2.2KW
Overall dimension: 1850*830*1500mm
Net weight: 1400kg
