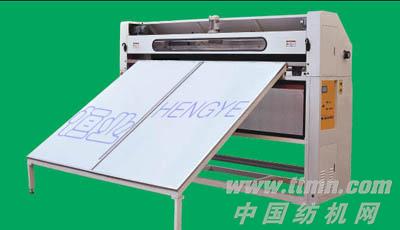

HY-QG-2电脑自动裁剪机

电脑自动裁剪机在设计过程中，采用了国外最优先的设计结构。主要电器均采用松下的产品，无论在外观结构、传动材料、刀片、马达、电路控制操作部分都领先国内同行。电脑可自动控制磨刀时间，切片采用八角圆刀，裁剪速度每分钟独立切边7.5米，低噪音、红外线控制，安全生产，质量高。
During the designing process, we adopt the most preferential overseas design structure, the main electric parts are all Panasonic. The outer appearance, transmission material, knives, motor and circuit control operation parts are keeping the leading position in the same industry in China. The computer can control knife-sharpening time. Also touch screen operation is available. The knife is octagonal round one. The speed of cutting margin is 7.5 meter per minute. Our prod-ucts keep the advantages of low noise, high quality, infrared ray controlling and safety.

功能范围：本机能单独裁边、裁条和横裁
Function range: Slitters, Trim margin, Cross cut.
范围选择
Range 最大X方向尺寸
The max X dimension 最小X方向尺寸
The min X dimension
裁边
Trim margin 2500mm 1200mm
裁条
Slitters 2500mm 160mm

范围选择
Range 最大Y方向尺寸
The max Y dimension 最小方向尺寸
The min Y dimension
横裁
Cross cut ≤2200mm 300mm

技术参数：
Technical Parameter:
裁剪厚度Thickness 3~50mm
分条裁剪Slittering 160~2500mm
裁剪速度Speed of Cutting 7.5米/分
7.5meters/minrte
总功率Power 1.5KW
工作电源Power supply 三相380V、50Hz（3）
主机外形尺寸（长×宽×高）
Machine dimension（L×W×H） 3500×2750×2100
重量Weight 1000Kg
出料斜板长度Length of board 2.3M
