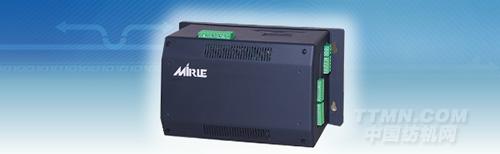

满液式螺杆控制器

公司名称:盟立自动化科技(上海)有限公司

CPU                                  SC-80HC2D-FC5                 SC-80HC2D-FC6
                 工作温度                  -10℃～+60℃
                 储存温度                        -20℃～+70℃
一般规格         湿度                             5%～95%RH
                 额定工作电压                     DC 24V 35W

                                      DI                   16点                           32点
                            DO (Relay)              16点                          24点
Digital I/O点数  膨胀阀驱动               1组                           2组

                               NTC                    8点 -30~150℃                  10点 -30~150℃
                                                              精度±0.1℃                   精度±0.1℃
Analog I/O点数     AI/0~20 mA               4                             6
                                使用语言                 MHC-PP系列阶梯图程式,SFC,EEVC套装软体
                               位存储器                    6144                      6144
                              输出寄存器                  7400                       7400
万年历功能                           年/月/日/星期/时/分/秒
通讯接口                              RS-232C、RS-485可调整
通讯协定                          标准Modbus Slave / Master Port
