Specifications
|
 |
系统 |
| |
- CPU：Intel® Celeron M 1G /512K
- Chipset：Intel® 910GMLE+ICH6M
- Memory：1 x 200-pin DDR2 400/533 SO-DIMM max. up to 2GB
- Ethernet：Intel 82562EZ 10/100 LAN 82573L Gigabit LAN
- Dimensions：315(W) x 247(H) x 68(D) mm
- Weight：5.2 kg
- OS Support：Windows XP Embedded, Linux (Fedora 2.6), WinCE 6.0
|
|
工业等级显示 |
| |
- Display Type：10.4" TFT LCD
- Max. Resolution：800 x 600 pixels
- Colors：16.2 M
- Luminance ：400 cd/m²
- Contrast Ratio：700：
- Viewing Angle(CR=10)：80° (left), 80° (right), 60° (up), 80° (down)
|
|
触控面板 |
| |
- Touch Screen Type：5-wire Analog Resistive type
|
|

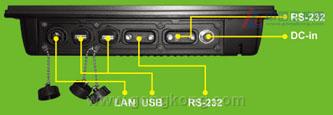

I/O 接口 |
| |
- Serial：2 x RS-232
- USB：2 x USB 2.0
- Audio：1 x AC97 codec with 2W Amplifier (Internal)
- CF Card Socket：1 (internal)
- Ethernet：1 x RJ45 connector for 10/100 base T
- Mini PCIe Socket：1 (Internal)
|
|
电源 |
| |
- DC Input Voltage：Wide range 12-24V DC/DC input
|
|
环境可靠性 |
| |
- Operating Temperature ： 0~50℃(with HDD ) / -10~60℃ (with wide temperature SSD)
- Storage Temperature ：-20~60℃ (with HDD ) / -30~80℃ (with wide temperature SSD)
- Humidity：5%~95% RH, non-condensing
- Certifications：CE, FCC, VCCI

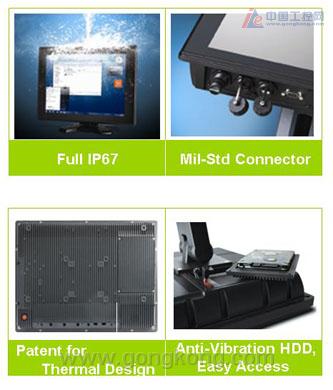

- Protection Class：IP67
|
|
军规MIL-STD-810G |
| |
- Function Shock ：Method 516.6, 40G’s @ 11ms (Non-Operating )
- Crash Shock：Method 516.6, 75G’s @ 8-13 ms (Non-Operating )
- Vibration-General：General Minimum Integrity Exposure, Method 514.6 E-1 (Non-Operating)
- Vibration-Helicopter：Helicopter Minimum Integrity Exposure, Method 514.6 E-2 (Non-Operating )
- Vibration-Ground Vehicle： Method 514.6 C-1/C-2/ C-3 (Operating)
- High Temperature：Method 501.5 , Operating 65℃ / Storage 80℃
- Low Temperature：Method 502.5, Operating -15℃ / Storage -30℃
- Humidity： Method 507.5, 95% RH
- Thermal Shock： Method 503.5 , -30~70℃(Non-Operating)
|
|
选配 |
| |
- Wireless：Expansion by Mini PCIe Socket
- Power Module：Power module (9V-32V) for vehicle
- Cables：Waterproof extension cables (2 x Serial, 2x USB, 1xEthernet) 1.8 meters
- Vehicle Mounting Kit：Anti-Vibration mounting bracket for vehicle
- Wall Mounting Kit：Wall mounting kit
- VESA Stand：VESA stand ARM for RPP serirs
- DRAM：Memory module (2GB)
- DRAM(WT)：Wide temperature memory module (1GB,2GB)
- SSD：Wide temperature SSD (16GB, 32GB)
- HDD：Normal temperature HDD (80GB, 160GB)
- Sunlight Readable：Optical bonding w/LR resistive touch
- Win XP Embedded：Win XP Embedded operation system
|
|
订购资讯 |
| |
- RPP-104M：10.4" Rugged Panel PC w/resistive touch, 1GB RAM
- RPP-104MV：10.4" Rugged Panel PC w/resistive touch, 1GB RAM, power module for vehicle
|
|
包装列表 |
| |
- 1 x Waterproof DC extension cable
- 4 x Fastener (Include screws)
- 1 x Utility CD
- 1 x Quick Setup Guide
|
