horner推出RX371 Ruggedized Controller

2012年01月10日　　来源：中国纺机网

产品信息

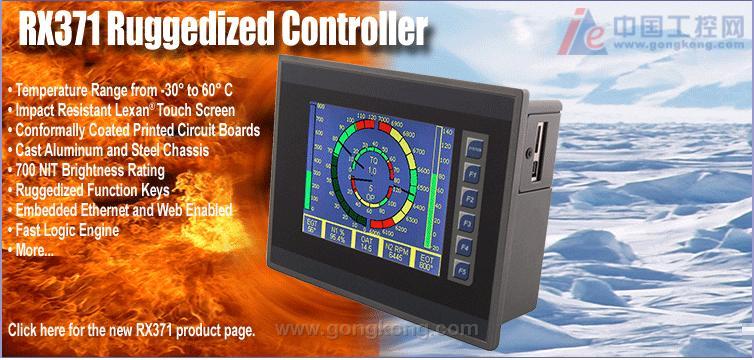

horner推出RX371 Ruggedized Controller。

Specifications

Display Type (LCD with Backlight)	5.7" QVGA TFT w/32,000 colors. 700 NIT
Display Screen Dimensions	320 x 240 pixels
Display Memory	2.75 MB
User Keys	5 user-defined Function Keys and 1 System Key designed for 30 Million + operations
Number of Screens Supported	1023
Serial Ports	2 Serial Ports, RS-232/RS-485
SmartStack Support	Up to (4) metal SmartStacks directly on back
SmartStix Support	Yes
Ethernet	10/100 MBPS Ethernet
Removable Media	MicroSD® Storage up to 2 GB
USB A Connector	Support for USB Flash Drives
USB Mini B Connector	Programming Port
Temperature Range	-30° to 60° C
Approvals	CE, UL and C-UL pending
Environmental	NEMA 4X and IP66
Impact Rating	Exceeds requirements for IK7
Height	5.964" (151.49mm)
Width	7.682" (195.12mm)
Depth	2.425" (61.60mm)
Weight	54 oz (1.53kg)
Horner Part Number	HE-RX371
