SmartRail系列

2012年01月04日　　来源：中国纺机网

产品信息

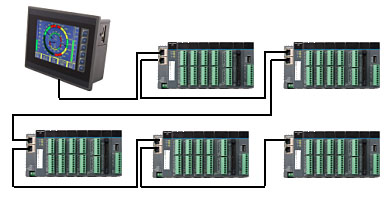

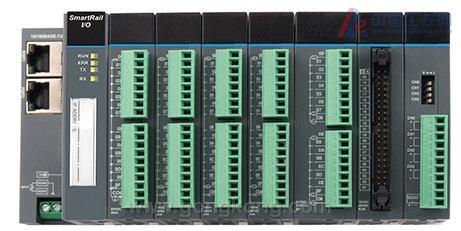

SmartRail系列I/O扩展模块，以太网连接，速度快，种类丰富。

Part Number	Description
	SmartRail Bases
HE599ETX200	Ethernet Base. Compatible with XL6e, NX221/251, QX, RX, RCX. Features built-in unmanaged switch. Supports up to 8 I/O modules drawing up to 1.5A @ 5Vdc. Supports up to 256 digital and 32 analog I/O per base. Requires Cscape 9.1, and Firmware 12.70.
HE599CNX100	CsCAN Base. Compatible with XLe, XLt, XL6, XL6m, XL6e, NX, QX, RX, RCX. Projected Availability Summer 2010.
HE599PBX100	Profibus Base. Requires a Profibus Master, such as the SmartStack PBM650 module. Supports up to 8 I/O modules drawing up to 1.5A @ 5Vdc. Supports up to 256 digital and 16 analog I/O per base.

	SmartRail Ethernet cables
HE599CBEnnn (nnn=length)	Available in 1, 2, 3, 6, 10, 15, 30 & 50 foot lengths (ie HE599CBE001 = 1 foot cable)

	Digital Input Modules
HE599DIM510	8 DC Inputs (24vdc pos/neg logic).
HE599DIM610	16 DC Inputs (24vdc pos/neg logic).

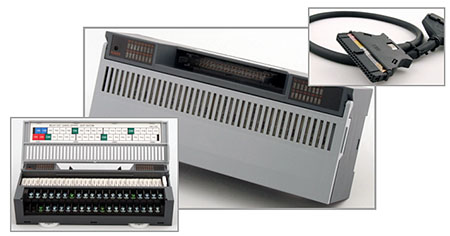

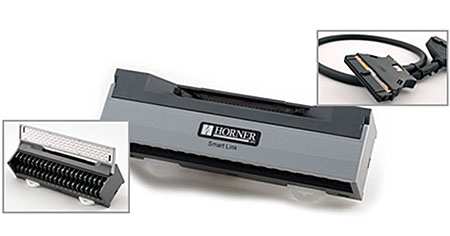

HE599DIM710	32 DC Inputs (24vdc pos/neg logic). SmartLink Expansion Cable and Terminal Strip recommended.
