1700 喷墨绘图仪
济南恒星电恼设备制造有限公司
2012年01月02日 来源：中国纺机网

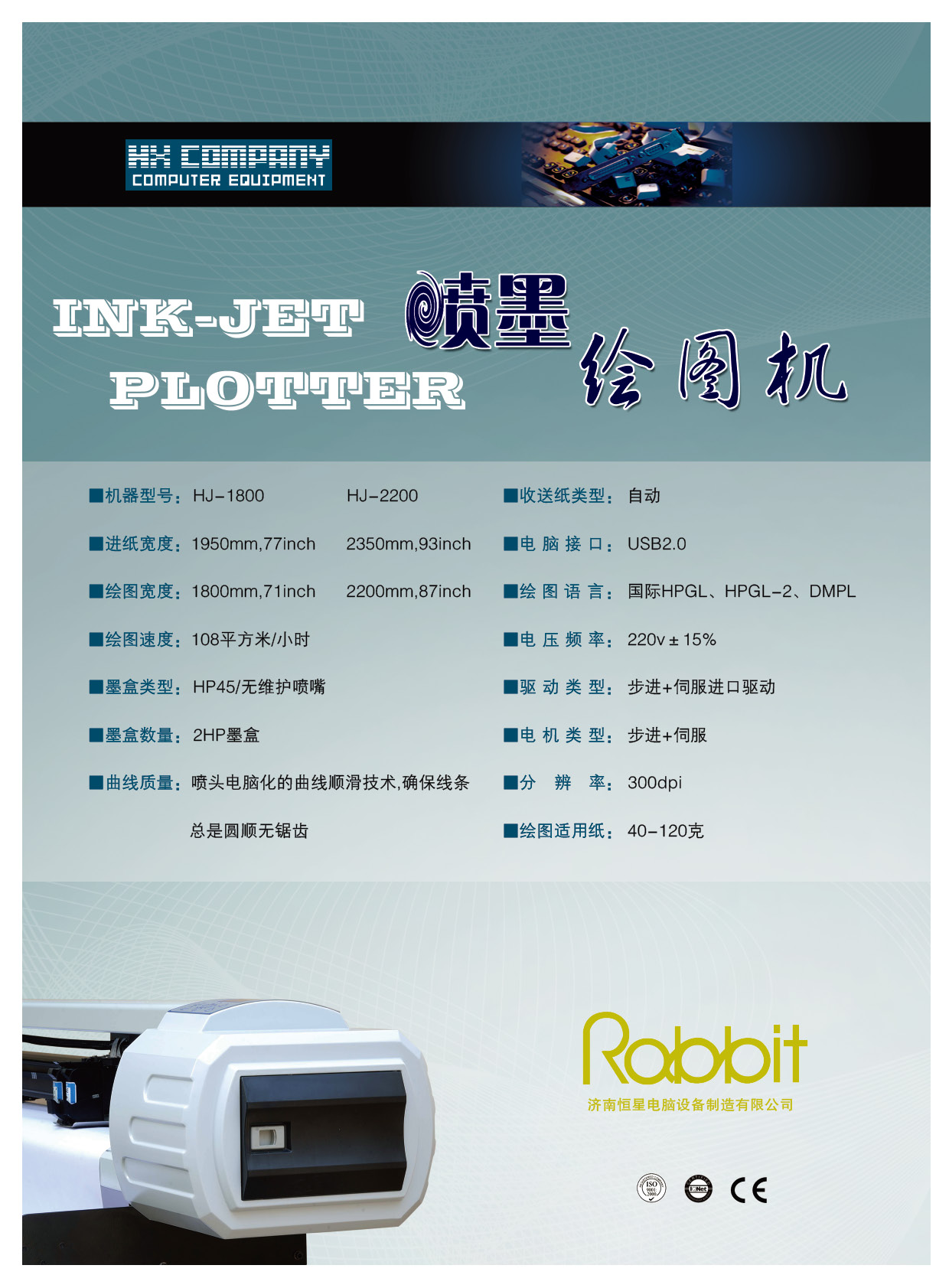

Inkjet plotter
Apply double HP high speed sprayer ,evaluate the working speed times than traditional spray plotters
Constant plotting speed,with a maxim plotting speed :108 m2/hour.
| Parameter | Hj-1800 | Hj-2200 | |||
| Max ,plotting width | 1800mm,71inch | 2200mm.87inch | |||
| Maximum paper feed width | 1950mm,77inch | 2350mm,93inch | |||
| Plotting speed | 108m2/hour | ||||
| Type of ink-box | 2 hp ink-boxes | ||||
| Curve type | Muzzle with computerized curve smooth technology Make sure the lines are always smooth without jags | ||||
| Paper loading type | Automatically | ||||
| Hardware interface | Usb2.0 | ||||
| Language format | Dmpl,international hpgl or hpgl-2 language | ||||
| Power supply: | 220V±10% 50HZ or 110V±10% 60HZ | ||||
| Drive type | Stepper+server driver | ||||
| Motor type | Stepper motor + sever motor | ||||
| Resolution | 300dpi | ||||
| Acceptable media(g/m2) | 50g-120g | ||||
| Weight |
