6090 1215 平板切割机

济南恒星电恼设备制造有限公司

2012年01月03日　　来源：中国纺机网

产品信息

1) Imported synchronous belt as conveyor belt.
2) Working speed equals imported machines, over 2 times faster than domestic machines.
3) Perfectly satisfy the precision require of all trades.

产品详细信息

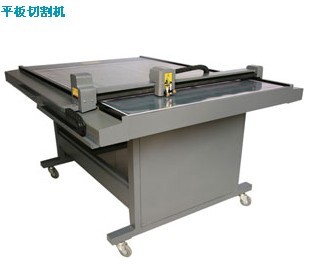

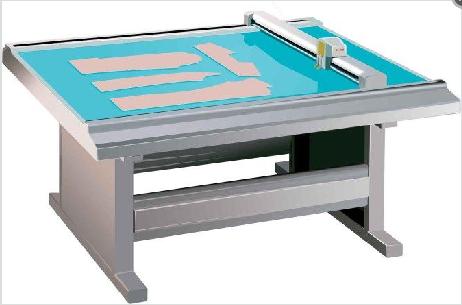

Flatbed cutter

1) Imported synchronous belt as conveyor belt.
2) Working speed equals imported machines, over 2 times faster than domestic machines.
3) Perfectly satisfy the precision require of all trades.
4) Advanced design tgeory, scientifically, practically and precise manufactured, with high stability and operant.
5) Supporting kinds of working materials, one machine with different applications, greatly increase the working capacity and practical capability.
6) Human-friendly control panel, easy and convenient operation, support cutting working and computer operating at the same time.
7) Capability of any kind of CAD designing software.

Main Parameters:

Type	HC-6090	HC-9012	HC-1215
Features	Computer operating together with the cutting working, quick data transferring, available for constant application.
Cutting Speed	UP to 800mm/s
Cutting Depth	≤2mm
Working Materials	All kinds of Hard Paper Board, PVC Board, Ivory Board, Rubber Tile etc.
Cutting Type	Multipurpose Blade Holder, Half-Blade/Full-Blade Setting
Fixing Type	vacuum adsorption
Interface	RS232 Serial Interface
Memory	4M
Language Format	CPU
Data Buffer	HPGL, HPGL-2, DMPL
LCD	LCD Panel, Touching Button
Transmitting Material	Imported synchronous belt
Working Voltage	AC220V ± 10%, 50HZ
Fuse Type	5A
Motor	Stepper Motor
Driver	Imported Stepper Drive
