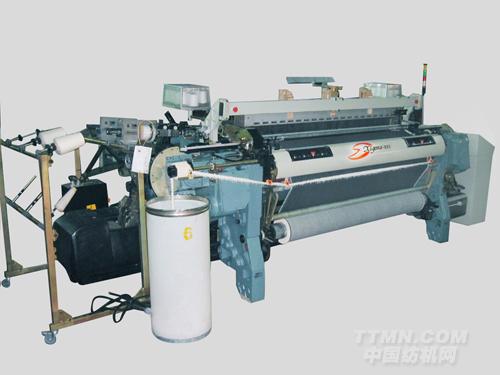

高速剑杆织机

公司名称：鹤山市亚典机械纺织有限公司

高速剑杆织机

[详细说明]
     幅宽
可用幅宽：190cm
Reed width
Usable reed width:
190cm

减幅
对称或非对称减幅：30cm
Width reduction.
Symmetrical as dissymmetrical:30cm

引纬率
可达1150+_50m/min
Insertion rate.
max.1150+or-50M

适应纤维种类
短纤纱为：Nm 200-Nm 3 (Ne 120-Ne 1.8)
Yarn range Stable:  Nm200-Nm3(Ne 120-Ne 1.8)
长丝：22 den-4000 den(25 dtex-4500 dtex)

经纱：上浆纱，不上浆纱，加捻纱，无捻纱，混合纱等
Filament: 22 den-4000 den (25dtex-4500dtes)
Warp:sized or without twisted or without texture yarn etc

电子选纬器（８色 ）
Electronic weft selector (8 color)

送经机构
交流伺服电机送经
Let-off
AC servo motor let-off

边盘直径：800、1000mm
Warp beam dia ：800、1000mm

后梁
单辊通用型
Back rest
raditional single

停经装置
６列电子停经杆，节距为16或30mm
Warp stop device.
6 row electronic,
pitch distance 16 or 30mm

卷取机构
交流伺服电机卷取
Take-up device
AC servo motor take-up

寻纬电脑自动控制寻纬机
pick finding
automatic pick finding
controlled by　computer

控制系统
计算机处理控制系统
Control system
computer control process

主电机功率
7.5Kw
机器转速
500r/min
