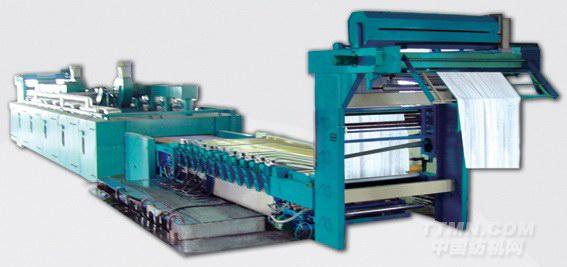

WQ480型圆网印花机

公司名称：上海卫强印染机械有限公司

主要规格：

MAIL SPECIFICATIONS
机械公称宽度：1800-3000mm
（最大印花宽度1650-2850mm）
机械车速：4-80m/min
印花主机：
圆网周长：640AL 819AL 914AL 1018AL
印花套色素：4-16套
对外精度：≤0.2mm
刮印方式：刮刀或磁棒
进布方式：布车进布，面布操作台在左手，浆泵在右手边
电器控制及操作：PLC控制；人机介面操作
印花浆料供应：不锈钢内齿轮泵供浆。
印花导带：进口
Mechanical nominal width：1800-3000mm
(Maximum printing width：1650-2850mm)
Mechanical speed:4-80m/min
Printing Host:
Round-net circumference: 640AL 819AL 914AL 1018AL
Number of priting set: 4-16sets
Precision: ≤0.2mm
Way of Scraped-printing: scraper or magnetic-stick
Way of fabric-input: fabric-input by machine,fabric and starching pump are respectively on the left and right of control board
Electrical control & operation: controlled by PLC; operated with GUI
Starch supply for printing: starch supplied by Hg inside the stainiess gear
Printing belt: imported

公司简介：

我

On the basis of more than 20 years experience of accessory production,our company coo-perates with foreign partnership to generate the round-net printing machine,whose improvement on the electrical control and dried-room keep the printing machine better.Units of infrared putting margin,pasting fabric,printing are transmitted by the mechanical and independent servo exchange approach.Scrapend-printing is controlled by pneumatic module;the liquid level of pulp colour is controlled automatically by electric.
