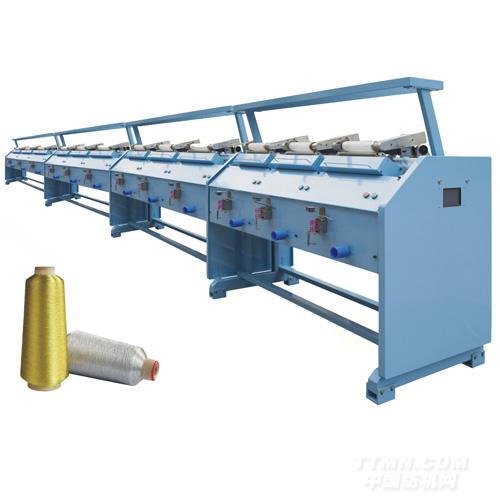

SKCT—W2型高速精密络筒机

SKCT—W2型高速精密络筒机是最新自主研发的新一代高速精密络筒机，它汇聚了  同类国际机种的优点，结合国内机种的实际需求，采用了先进的伺服控制技术、气动加压传
  动、双端握持卷绕筒子，具有摆动力矩大，定位精度高，卷绕速度快等特点。
    该机采用单锭独立变频调速，导丝往复机构采用伺服电机结构完成。可在参数范围内通
  过人机对话形式自由控制卷绕密度及无级调速，可做松式染色筒子和经纱，纬纱或针织高速退介筒子。可单锭或整机设置所需的工艺要求及卷装形式，也可显示单锭即时状态，如卷装直径；长度；线速度；累计时间；故障状态等。
主要技术参数：
1．键距：550mm
2．键最：6-60锭
3．卷绕速度：150-1200mm／min
4．往复动程：60~300mm
5．最大卷绕直径：250mm
6．卷装形式：直筒、锥筒
7．单锭装机容量：150W/锭
8．30锭外形尺寸：17 9x0. 74x1．67m(长x宽x高)
SKCT-W2 HIGH SPEED REWINDING MACHINE is the new generation high
speed precise rewinding machine researched and developed by ourself. We adopt
advanced servocontrol, pneumatic pressurizing driving and double-end griping
tubes technology. It has many advanced feature such as biO swing moment, high
positioning accuracy and high winding speed.
Technical Parameter:
1. Spindle pitch: 550mm
2. Number of spindles: 6-60 spindles
3, Speed of winding: 150-1200mm/min
4. Traverse: 60 ~ 300mm
5. Largest winding diameter: 250mm
6. Type of reel: cylinderical or conical
7. Installed capacity of sigle spindl~: 150W/spindle
8. Dlmenelous: (LxWxH) 17.9x0.74x 1.67m
