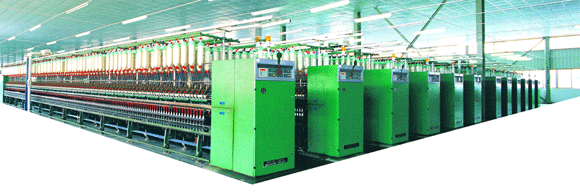

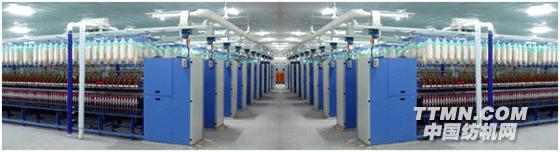

环锭细纱机-蓝堡

车头齿轮传动系统优化设计，配套滴油润滑装置。
Optimum design for headstock gear driving system, Equipped guttale-oil-lubricate

超越式级升撑爪机构，不用调换棘轮，管纱成形好，适应高速退绕。全面优化的三自动装置，动作准确可靠。
A proper body enabling highspeed and small covering area

机器截面优化设计，断头率低，产量高，纺纱质量好。
PLC-Controlled main motor with 7_stage conversion speed governing

优良的铝合金笛管装置，改善细纱质量，防止刮花。
Main driving system with highstrength looking belt saving energy and reducing noise

吹吸风清洁装置，纺氨纶包芯纱装置由用户选用。
Fully optimized automatic mechanism and frame, and structure making it easy to operate

简洁可靠的传动车头
Simple and Reliable Headstock

科学合理的牵伸系统
The rear draft system in reason

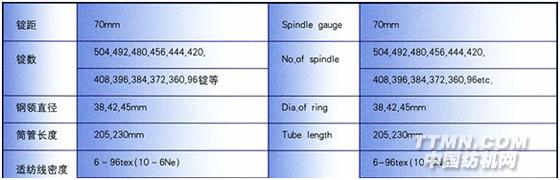

锭钜

Spindle gauge

70mm

锭数

No. of spindles

420(基本型)

钢领直径

Dia of ring

35，38，42，45mm选用

筒管长度

Bobbin length

180，205，230mm选用

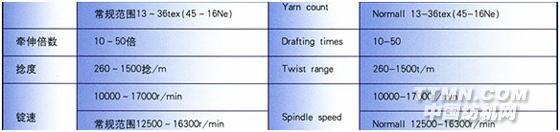

适纺纱线细度

Yarn count

6-96tex（100-6Ne）

牵伸倍数

Draft

10-50倍

捻度

Twist range

200-1300twist/m

锭速

Spindle speed

10000-19000r/min

捻向

Twist

Z或S

粗纱卷装

Roving package

Φ152×406mm单层四、六列吊锭

变速形式

Mode of speed governing

变频无极调速，或4/6极电机变速

电机功率

Machine power

17.57KW

机器长度

Machine length

L=2200+(N/2-1)×70mm N-锭数

机器宽度

Machine width

790mm

独特的车尾设计 Unique Tailstock structure

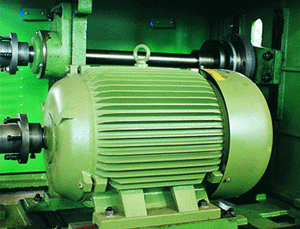

主传动采用双速电机，低速启动后定时切换高速或单速电机，采用变频调速，供用户选择
Main driving adopts double-speed motor Which starts at low speed then switches to high speed automatically after few minutes

主电机布置在吸风机下方，有利于主电机散热
Main drive motor is positioned in the flow of the exhaust air, the form the motor is extracted simulaneously and the climate condition in the mill is nearly not effected

主传动作结构合理，调整方便
The structure of Main driving is reasonable, and it is adjusted easily
