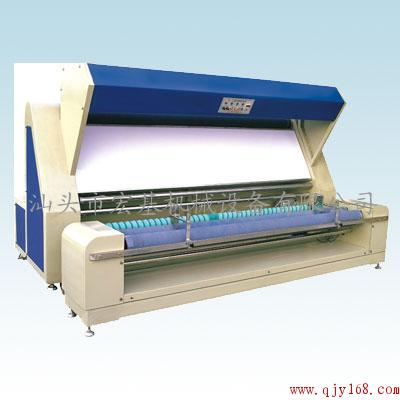

YB-210B 验布机
YB-210B Fabric Inspecting Machine
用途：适用于宽度在90’’（2280mm）范围内的各种布料的检验和松布。
特点：
(1) 设有前后滚动方式，方便检查布匹底面。
(2) 滚动速度可根据需要调校。
(3) 多种型号大小选择，适合各种类型布匹粗细。
(4) 光亮柔和光管系统，并可调校光暗，布匹品质，一目了然。
(5) 设有松布功能，可同时验布和松布。
(6) 电眼追踪对边装置，使布匹上卷更整齐，布尾自动停机装置。
技术参数：
(1) 电源/功率：220V/2.25KW
(2) 卷布速度：0-35码/分
(3) 验布宽度：2280mm(90’’)
(4) 主机尺寸：2980mm×1600mm×1900mm
(5) 重量：400KG
Function：It is suitable for inspecting and relaxing different materials whose diameter is within 90’’ (2280mm)
Features:
(1) There is a forward and backward rolling device which is convenient to inspect the cloth material.
(2) The speed of rolling can be adjusted according to the customers’ need.
(3) It adopts the bright and soft steel pipe system, thus you can adjust the degree of the lightness or darkness. And the quality of the cloth can be clear at a glance. (4) With the cloth relaxing system, it can inspect and relax the cloth at the same time.
(5) It has tracking installment with magic eyes in opposite sides, which can roll the cloth neatly.
(6) It has an automatic stopping device that is to say it can stop automatically when the cloth is rolled at the tail of it.
Technical parameter:
(1) Power supply/power: 220V/2.25KW
(2) Rolling speed:0-35yards/min
(3) Inspecting width: 2280mm(90’’)
(4) Dimension of the machine:2980mm×1600mm×1900mm
(5) Weight: 400KG
