LM8M64,SX16H003,SX16H003-ZZA,SX16H004,KCB084SV1AC-G40,KCB084SV1AC-G40-91-14
ITEM SPECIFICATION UNIT
Outline dimensions 205.1 (W) × 145.0 (H) × 6.7 (D) mm
Effective viewing area 172.38 (W) × 129.78 (H) mm
Dot number (800×R.G.B) (W) × 600 (H) Dots
Dot size 0.051 (W) × 0.193 (H) mm
Dot pitch 0.071 (W) × 0.213 (H) mm
Display color *1 White *2 －
Base color *1 Black *2 －
Mass 225 g
CA51001-0250 07A,KYOCERA,KCB084SV1AC-G40,KCB084SV1AC-G40-91-14,KCB084SV1AC-G40-92-12
LM8M64,

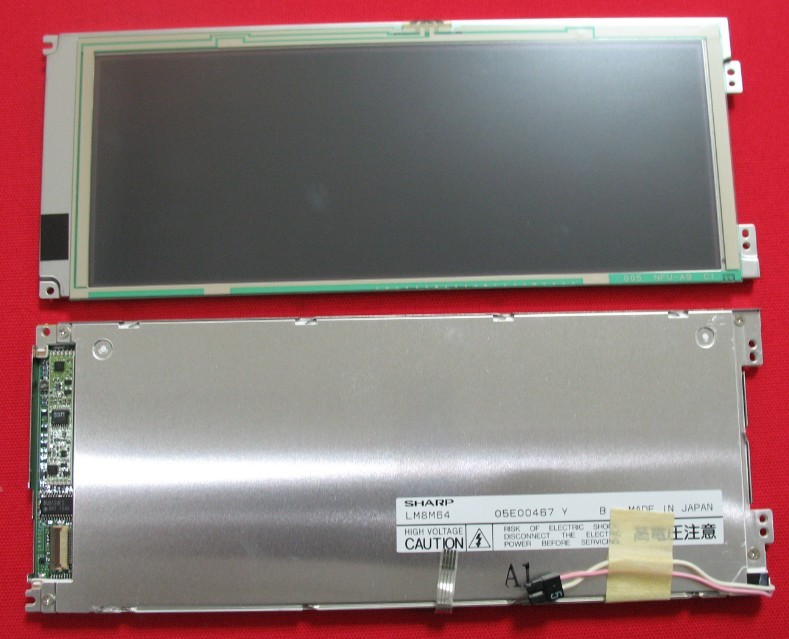

夏普8.1" LM8M64液晶屏
产品型号 LM8M64
产品品牌 SHARP
显示尺寸 8.1"
外形尺寸 225.4 x 87.4 x 6.7 mm
分 辨 率 640 x RGB x 240
面板类型 CSTN
显示颜色 262K
对 比 度 30:1
亮 度 80cd/m2
接口类型 TTL
背 光 1×CCFL
乔纳达720和728屏幕,日立SX16H004 - SX16H003
SX16H003,SX16H004,SX16H001,SX16H002,SX16H005,SX16H006
(1) Part Name
(2) Module Size
(3) Dot Pitch
(4) Number of Dots
(5) Duty
(6) LCD
(7) Viewing Direction
(8) Backlight
(9) Power Consumption (Total)
(10) Weight
(11) Power Supply Voltage
(12) Touch panel
SX16H003-ZZA
173.0(W) mm ? 70.0(H) mm ? 8.5 max (D) mm
0.0775(W) mm ? 0.224(H) mm
640 ? 3 (R,G,B)(W) ? 240 (H) dots
1/242
Film type (negative type)
6 O'clock
Cold Cathode Fluorescent Lamp (CFL) ? 1
(1.1w typ) Except inverter
(140)g typ
3.3V only
Resistance type
