常州市华纺纺织仪器有限公司YG023B-III全自动单纱强力仪

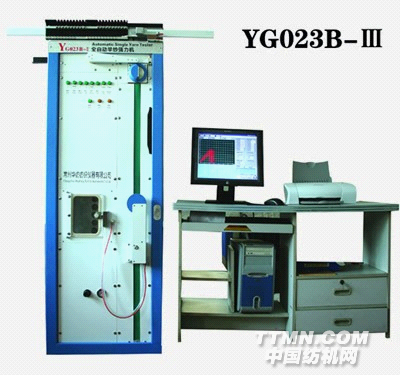

YG023B-III全自动单纱强力仪
电脑控制全自动测定单根纱线的断裂强力和断裂伸长,打印测试数据和统计结果。汉化格式的菜单,强伸曲线由高分辨率彩色显示器即时显示,显示器上方同时显示强力和伸长数据。性能符合:GB/T3916。14344ISO2062等。
主要技术参数:
1.强力测试范围 0-5000cN±1%
2.夹持距离 100-500mm任选
3.拉伸速度 20-14000mm/min
4.数据输入方式 标准键盘输入
5.夹持方式 气动
6.外形尺寸 主机:L650×W580×H1730mm
Tomeasuretensilestrengthandbreakingelongationofsingleyarnwithpccontroledautomaticallyandtoprintoutalltestdataandstatisticresults.Withchineseformatmenu,tensilecurvecanbedisplayedbyhigh-resolutionmonitor,tensileandelongationdataaredisplayedonthetopofthescreen.ThepropertiedshouldbeinconformitywiththerequirementspecifiedinGB/T3916.14344ISO2062etc.
MainTechnicalData:
1.Rangeofstrength:0-5000cN±1%
2.Grippingdistance:100-500mm(adjust
