高温烘箱

高温烘箱

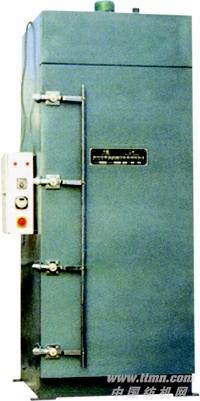

High-temperature screen drying oven
YDFJ-05-2型-B 　　
Model YDFJ-05-2-B

产品用途：
本烘箱用于显影后的花筒的花型定型。
Product use:
　　The machine is used to set the pattern of the screen cylinder that has been developed.
　　采用上下加热方式，缩短了加热时间，使箱内温度更加均匀，有效的提高了花型的固化质量。
　　Two heating sources are provided,namely an upper one and a lower one,which greatly reduces the heating time,makes the temperature inside the oven more even and improves the quality of the solidified printed pattern.
基本参数：
◇名称：高温烘箱
◇型号：YDFJ-05-2型-B
◇规格：200 260 280 320 360
◇功率：17KW以上
◇温度：25-200℃
◇网长：2000mm-3600mm
◇电压：380V
◇外型尺寸：1130mm×1200mm×2950mm
◇重量：1250Kg Basic parameter：
Name:High-temperature screen drying oven
Model:Model YDFJ-05-2-B
Specification:200 260 280 320 360
Power:>17KW
Temperature:25-200℃
Screen length:2000mm-3600mm
Voltage:380V
Dimension:1130mm×1200mm×2950mm
Weight:1250Kg
