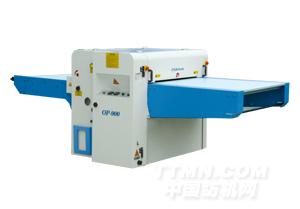

OP-900/900A/900L/900LA
OP-1000/1000A/1000L/1000LA連續式黏合機
CONTINUOUS FUSING PRESS MACHINE

用途
 針對平織／針織裁片之黏合工作。
 整匹布襯之黏合工作（可搭配送／收料裝置）。
Application
 For the woven/knitted fabrics fusing
 Fusing for the whole roll of fabric and interline. Machine can work together with feeding conveyor and collecting stacker as option.
優點
 提高產能，連續黏接一貫作業，最高生產效率。
 黏合寬度900mm/1000mm，長度無限。
 自動皮帶修正裝置，確保上、下皮帶不偏離。
 電子恆溫儀及固態繼電器控制恆溫系統，溫度偏差至最小極限。
 加熱監控設備，控制發熱系統正常操作。
 有6組電熱管，加熱系統傳熱均勻各種布料均可使用。
 進口鐵氟龍黏合帶確保溫度均勻。
 裝有防褶滾筒可處理各種布料。
 配有網帶輸送系列，冷卻效果佳。
 配有自動冷卻定溫停機裝置。
 強力彈簧／氣壓加壓裝置。
 自動翻轉撥片，更容易撥離裁片。
 特殊設計之清潔布桿，徹底清潔皮帶，更換更容易。
 選購：A氣壓式； L皮帶加長。
Features:
 Continuous fusing system increases the productivity.
 The fusing width is 900mm and the length is endless.
 PCB and micro switch control the upper & lower belts automatically.
 Electronic thermostat and the relay controller to offer the stable temperature and minimum the temperature differences to the minimum.
 The heating areas are well monitored, to ensure the heating system working normally.
 There are 6 heaters to distribute the heat evenly and can be used to all fabrics.
 The best quality of Teflon belt assures the precise temperature.
 With the wrinkle-free silicone roller to handle with all fabrics in perfect bonding.
 With the cooling fan and mesh conveyor belt, which has the best cooling effect.
 Auto cooling Function is automatically started once machine is switched to power off.
 Standard with strong spring-pressure mechanism. No extra air-compressor is needed.
 Rotary Strip-off device for strengthening the stripping function and avoid transforming on the finished fabrics.
 Special-designed clean rod to clean the belt completely, and it is easy for replacement once the rod gets dirty.
 Optional: A: Air (Pneumatic) Pressure   L: Longer bottom belt

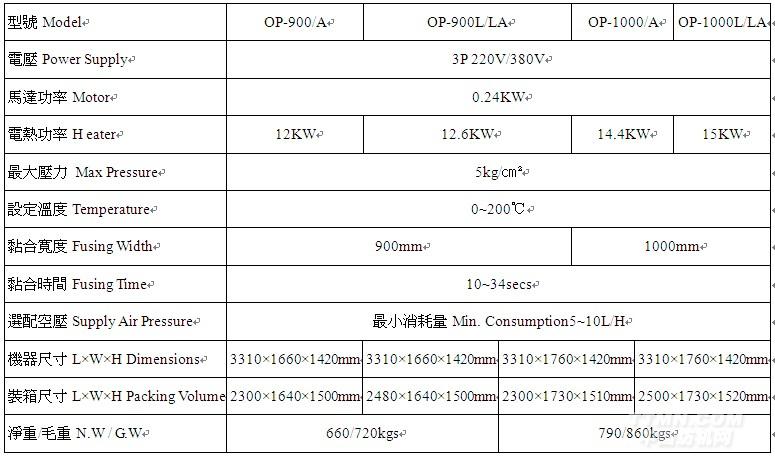

規格Specification
