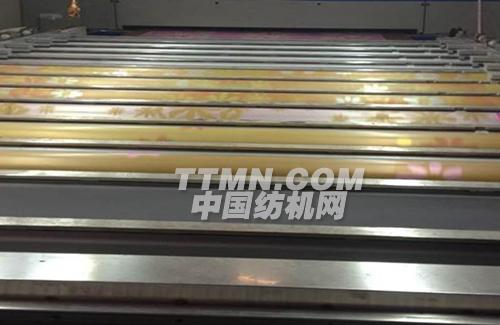

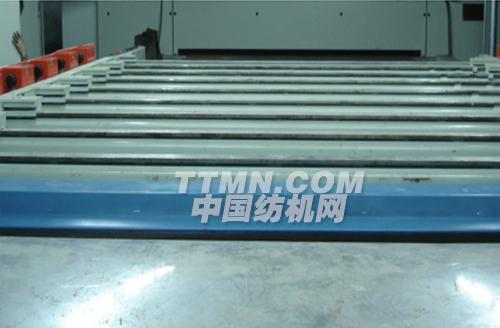

QS-3198封闭式圆网印花机
本机技术特征：
1.集体传动PLC数显控制
2.稳定性能高：印花单元精密气动控稳（集体传动/302.303气动控稳）
3.抗腐蚀性能高：80%采用不锈钢及抗腐蚀材料
4.机械系统集成化：超低的故障设计理念
5.节能环保的新理念：节电，节水（循环用水）
6.刮刀/磁棒联合机：适合不同克重织物印花
7.对花稳定/灵活：采用不锈钢件,耐磨、耐腐蚀。
8.纠偏采用双重纠偏装置/不锈钢滚轮。红外线探头/确保导带运行平稳
9.独特的印花系统，上胶，水洗，印花压辊，可以扩展更多的附加系统。

有效印花幅宽：1800-4000（mm)
印花套色数：4-12
圆网花回：640-754-819-914-1018
标准车速：4-100m/min
印花方式：：磁棒/刮刀
对花精度：±0.1mm
传动方式：集体传动
数字主屏：PLC数显控制
车别：左手车/右手车(沿布运行方向由传动侧判断)
对花调节范围：纵向360°/横向±10/斜向±3

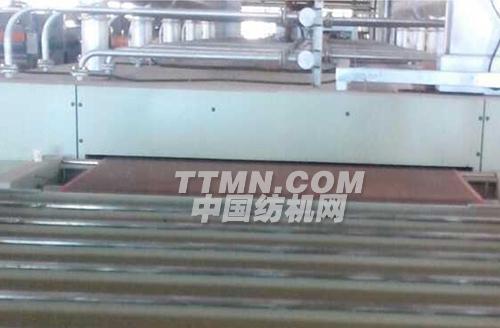

烘房形式：普通烘房/松式烘房/平进布
热源：导热油160°/天然气180°蒸汽130°
空气压力：0.6-0.8MPa
水压力：0.3MPa
电力参数：380VAC（±5%）50HZ 3PHASES
接地方式：TN-S
照明电源：220V
防护等级：IP54
总功率：≈105-165 KW

QS-3198 Close Rotary Screen Printing Machine
The machine technical features:
1.Collective drive PLC display control
2.High stability：printing unit precision pneumatic control stability(Collective drive/302.303 precision pneumatic control stability)
3.High Corrosion resistance: 80% of stainless steel and corrosion-resistant materials
4.Mechanical Systems Integration：Low failure design
5.New concept of energy saving and environment protection ,can be save water and electricity.
6.Scraper /magnetic rod combination machine：Suitable for different weight fabric printing
7.Printing stable and flexible: stainless steel parts, wear and corrosion resistance.
8.Correction adopt double correction device,stainless steel rollers. Infrared probe to ensure the conduction band running smoothly.
9.The unique printing system, glue, washing, printing rollers, you can expand more additional system..

Printing width：1800-4000（mm)
Colors：4-12
Repeat：640-754-819-914-1018
Speed：4-100m/min
Printing type：magnetic/ Scraper
Printing Accuracy：±0.1mm
Driving：collective driving
Digital main screen：PLC display control
Machine hand-type：left/right(according to the driving side based on fabric running)
Printing adjusting：Vertical360°/Horizontal±10/Diagonal±3
Dryer type：standard dryers/ loosen type dryers/Entry in open-width
Heating source：thermal oil160°/natural gas180°/蒸汽steam130°
Air pressure:0.6-0.8MPa
Water pressure:0.3MPa
Power Parameter：380VAC（±5%）50HZ 3PHASES
Grounding type:TN-S
Illumination：220V
Protective type：IP54
Total power≈105-165 KW
