GA841型自动码布机(Model GA841 Automatic Cloth Folding Machine)
发布时间:2014-07-04

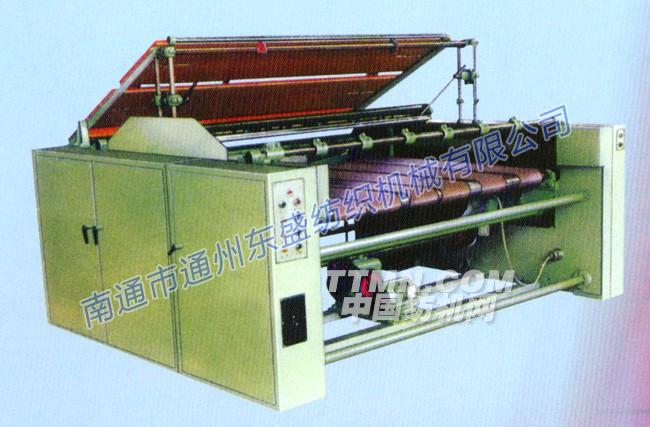

GA841型自动码布机
Model GA841 Automatic Cloth Folding Machine
用途 Purpose
适用于布机工场及印染整理工场,将刷布机刷尽的坯布或经过验布机的印染布按定长折叠成匹,加对折机构即为自动对折码布机。
The Automatic Cloth Folding Machine is used in weaving, dyeing and printing workshops can fold cloth or fabric delivered from cloth brusher or fabric inspecting machine into piece goods at a set length, it is added the discount construction to the automatic discount cloth folding machine.
主要特点 Characteristics:
1. 自动码布,自动升降,自动出布。
2. 采用无触点,感应式电子计数器,计数准确,可靠。
3. 变频调速,码布速度0-70米连续可调。
1. Folding fabric automatically, rising and falling automatically, rolling fabric automatically.
2. Use of non-contact, electronic sensor-counter, counting accurate and reliable.
3. Conversion controlling, the speed is around 0-70 meters.
技术参数 Technical parameter
型式 Type |
平面往复式 Plane reciprocate |
台面板高度(mm) Height of table(mm) |
约970 About 970 |
折叠高度(mm) Height of folding(mm) |
180 |
折叠速度(m/min) Speed of folding(m/min) |
0-70连续可调 adjustable |
公称宽度(mm)2000型为例 Nominal width (mm) of type 2000 |
2000 |
外形尺寸:长*宽*高(mm) Form size: length*width*height(mm) |
2160*2690*1500 |
重量(kg) Weight(kg) |
1500 |
规格(cm) Specifications (cm) |
180-400任选 optional |
