BG528验布卷布机(Model BG528 Cloth Inspecting And Rolling Machine)
发布时间:2014-07-04

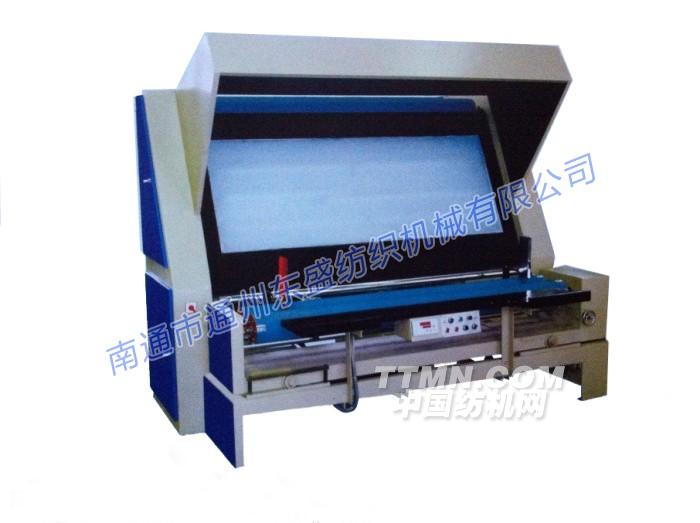

BG528型验布卷布机
Model BG528 Cloth Inspecting And Rolling Machine
用途 Purpose
该机主要适用于棉、麻、丝、毛机织物以及人造毛皮的检验、计长及卷筒,广泛应用于纺织、印染、色织、家纺等行业,外形设计新颖美观。
It applies to test and fold to cotton、yarn、silk、and leather. It is used to textile、printing and dyeing、weaving and silk industry,it is both novel and artistic.
主要特点 Characteristic
1. 光电液压对边,确保了布边的整齐度。
2. 两只变频器分别控制送布和卷布,张力均衡可调。
3. 电脑计数,米、码可以直接换算,计数准确、可靠。
1. The use of photovoltaic in the infrared device, so that the fabric edges neatly.
2. Double-conversion control to send and roll fabric, keeping tension balance.
3. Use of computer sensor-counter, counting accurate and reliable.
技术参数 Technical Parameter
卷布直径(mm) Rolling diameter (mm) |
350-500 |
验卷速度(m/min) Rolling speed(m/min) |
5-80m/min连续可调 adjustable |
对边精度(mm) Accurate of edge(mm) |
±3 |
公称宽度(mm)2000型为例 Nominal width (mm) of type 2000 |
2000 |
外形尺寸:长*宽*高(mm) Form size: length*width*height(mm) |
2900*2140*2040 |
重量(kg) Weight(kg) |
1100 |
规格(cm) Specifications (cm) |
180-400任选 Optional |
