公司名称:江阴隆吉诚机械制造有限公司
企业简介
江阴隆吉诚机械制造有限公司自创建以来,本着“以管理出效益、以质量求生存、以服务求发展”的精神,在纺织滤除、空调等领域中,不断进取,求实提高,为广大用户提供优质产品及周到服务,赢得了市场的广泛接受和好评。
公司拥有科学化管理体制,先进的管理技术,高素质的员工;汇集了一批业务能力出众的专业系统设计和研制开发人员,CAD软件绘图、设计系统;不断创新、精益求精,使我们的产品技术先进、性能优良、跟随时代同发展。
公司生产的LFUO17型多筒式滤尘机组具有结构简单、新颖、机组能耗低、除尘效果好、故障率低等特点。在空调设计上,正朝着高效率、节能型、机组化及机电一体化方向发展。
我们的宗旨是“用一份执着、用一份实在、用一份认真、创一流的服务、质量。用脚踏实地的从业精神和做事态度,致力于纺织滤尘、空调行业的开拓进取!”
江阴隆吉诚机械制造有限公司在江阴--苏南名城,热忱欢迎您的到来--五湖四海的朋友们!
产品

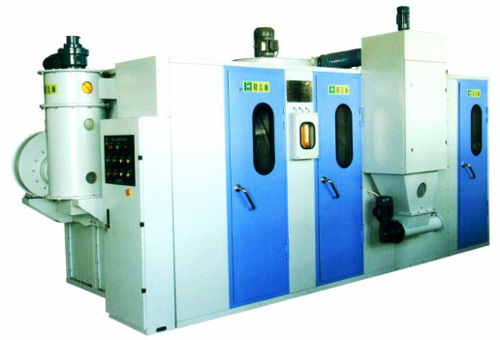

LFU017型多筒式除尘机组LFU017 Model Multi-drum Duster,如图:
产品用途
主要用干棉、毛、麻、化纤等纺织行业的空调除尘系统,过滤和收集空气中干性的纤维性杂质和粉尘,使含尘空气净化,以达到回用或排放要求。
Application:
Mainly used for air conditioning and dust cleaning system in textile industry including cotton.wool,linen/ramie and chemical fiber etc.,it canfilter and collet dry fibrous impurity and dust in the air,which m
工作原理
多筒式除尘机组是由第一级圆盘预过滤器和第二级多筒式滤尘器构成的机电一体化的除尘机组。第一级圆盘预过滤器主要过滤、分离、收集被处理空气中的纤维和杂质第二级多筒式滤尘器主要过滤、分离、收集第一级过滤后空气中的微细纤尘和粉尘。
Working principle:
It is a mech-electrical unit consisted of the first-stage disc prefiher and the second stage multiple round cage dust-filter. The first stage filter is used to extract, separate,collect the fibrous dust in the processing air; The second stage filter is used to filter out the Fine dust from the air exhausted from the first stage filter.
结构特点
除尘机组性能可靠,适应性强,过滤面积大,机组能耗低,系统阻力小;除尘效果好,速度快,安全阻燃;传动机构简单,故障率低;机组占地面积小,维护检修方便快捷。
Structure features:
Dust cleaning set has reliable performance,strong adaptability,large filtering area,low energy consumption,small system resistance,good dust cleaning

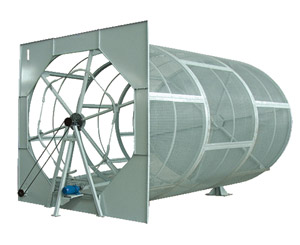

LFU032转笼式滤尘器 LFU032 Rotary Drum Filter,如图:
用途: 用于纺织行业的空调滤尘,过滤和收集空气中的细小粉尘,以达到净化空气的目的.
特点: 本机主要由机架、转笼、往复吸尘机构,挡板(或方箱)等部件组成。
Use : It' s mainly applied for air filtration in textile industry and collet fine dust contained in the air for air cleaning.
Features:This machine consists of frame,rotary drum,reciprocatingdustsuction mechanism and baffle plate (or square Box)etc.

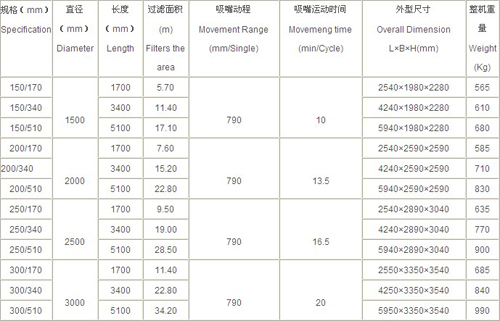

主要技术参数 Main Technical Data

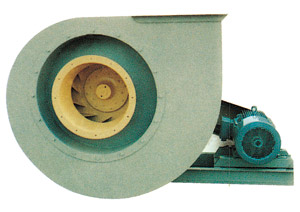

FC6-48离心风机,如图:
主要配置于纺织厂除尘系统清、梳吸落棉环节,也可用来输送原棉、羊毛或其他纤维物质。具有不粘花、不堵塞、防爆不产生火花的特点。
FC6-48 centrifugal fan It' s mainly used for cotton blowing and carding fuel circle of dust cleaning system in textile factories.also,it can be used for t

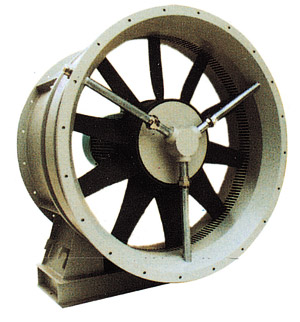

PWF40/45喷雾轴流风机,如图:
主要用于纺织厂空调系统。将加湿和送风二大功能合为一体,从而简化了空调室,节约能耗,节约用水。
PWF 40/45 spraying axial flow fan
Mainly used for air conditioning system of textile factories,it interates humidification and blowing and therefore simplifies air conditioning room with energy and water saving effect.
FZ40/35轴流风机,如图:
主要用于纺织厂空调系统,分为落地式和墙式安装。
FZ40/35 axial flow fan
Mainly used for air conditioning system of textile factories,it can be horizontally installed or wall installed.
