MB432型超强双辊两次烫光机

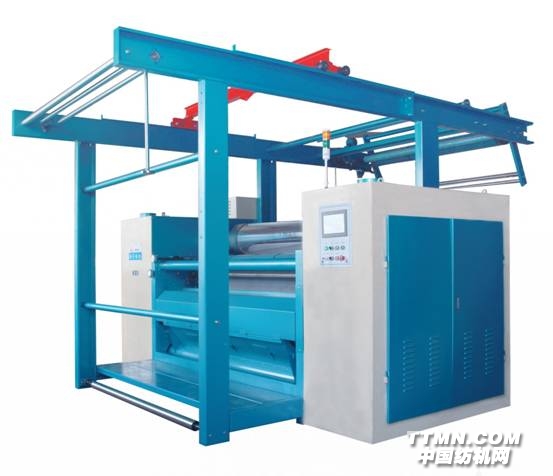

2011年6月14至17日第十五届上海国际纺织工业展会上，海宁纺织机械厂展出的产品之一即：MB432型超强双辊两次烫光机Model MB432 Super Double Rollers Polishing Machine，如图：

技术参数:

项 目 ITEM

参 数 DATA

　　公称宽度Nominal width (mm) 2000
　　烫辊直径Diameter of poilishing roller (mm) 2500
　　烫辊转速Rotating speed (r/min) 无级调速300-900 (Variable)
　　烫辊旋转方向 Direction of rotation 前烫辊顺逆均可，后烫辊顺转Fore roller:Forward/Reverse
　　Rear roller: Forward
　　烫辊最高工作温度Polishing temperature (℃) 250
　　布 速Fabric speed (m/min) 10-40
　　烫辊电热管功率Heating power (Kw) 57.6×2 59.7×2
　　电动机功率（不包括吸尘风机）（kw） 26.25
　　Motor power(Not include exhauster)

外形尺寸Overall dimensions :
　　长（mm）L 4950
　　宽（mm）W 4260 4760
　　高（mm）H 3120

优势及特点:
　　MB432型双辊烫光机性能良好、操作简单，使用可靠，与国内外同类机型相比较具有以下点：
　　This high quality MB432 polishing machine is easy

to operate and reliable with the following features compared to the congeneric machines:
　　1.采用双烫辊双托床，烫光效果好，效率比普通烫光机提升一倍，其中前烫辊可顺逆两个
方向运转，逆方向运转立绒上光、顺方向运转伏绒上光。烫辊采用大直径烫辊，热容量大，工作温度为75-250℃，由“专业温控仪＋固态继电器”智能控温，温控精度±5℃，各项功能在大屏触摸屏上显示及设置。托床拖带跑偏由气动装置自动纠正,属第三代产品，国内领先。
　　Double polishing rollers double table lathes have good effect. The working efficiency is nearly twice as the ordinary polishing machine. The fore polishing roller is possible to run forward and reverse, polish velvet velludo when anticlockwise and polish velvet plain clockwise. Adopted big diameter polishing roller with large heat capacity. The working temperature is 75~250℃, the temperature accuracy is ±5℃, controlled by professional temperature controller and solid state relay, the functions appear on the touch sc

reen. Rectify the deviation of table lathe and belt automaticly by pneumatic device. This machine is the third generation product and in the leading position at home.
　　2.送布电机和出布电机采用变频器调速，各段张力分别可调，速度快， 效率高，布速可在10-40米/分内任意选择，数值由触摸屏上直接显示，各组导辊间张力可调。
　　Fabric feeding motor and fabric output motor adopt inverters, the tension can be adjusted separately, high speed and efficiency, the fabric speed can be chosen from 10 to 40m/min and it appears on the touch screen, the tension between each group of guiding rollers also can be adjusted.
　　3.可选装预扩幅、归中等部件，适用于卷边的织物。
Pre-spreading part and centering device are optional parts, suit for edge curling fabrics.
产品应用:
　　MB432型超强双辊两次烫光机适用于各种天然和化学纤维的机织织物、针织织物和簇绒织物的烫光处理，主要用于顺毛大衣呢，羊绒大衣呢、毛毯、经编类织物、超柔短毛绒、不倒绒的烫光，经烫光处理后织物表面蓬松柔软，绒毛顺直光亮，可与天然织物媲美。其

工作效率比普通烫光机提高近一倍。
This machine is suitable for surface polishing of natural and chemical fiber, knitted and gregarious fabrics. It is mainly used for processing of ordinal woolen, blanket, warp knitting fabrics, micro velboa and knitted non-pressed-pile. Its working efficiency is nearly twice as the ordinary polishing machine.

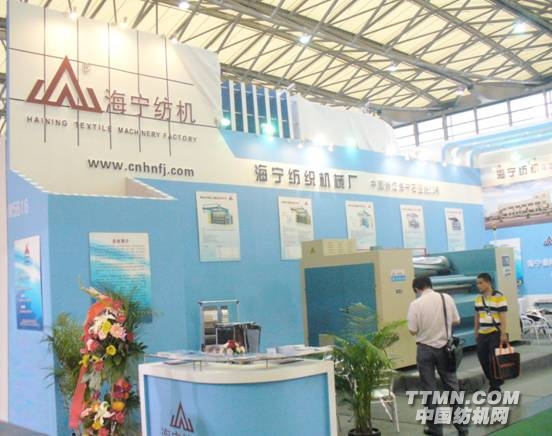

展台照片:

贵宾或客户洽谈照片等:
