您所在的位置:中国纺机网-第十六届上海国际纺织工业展览会-织造机械-GE04T12型电脑高速丝袜机宁波慈星股份有限公司
打印字号收藏

GE04T12型电脑高速丝袜机

宁波慈星股份有限公司

时间:2011年07月15日   来源:

GE04T12型电脑高速丝袜机
宁波慈星股份有限公司


  “慈星”牌GE04T12型电脑高速丝袜机是继GE04P12型电脑高速丝袜机之后开发的一款具有四路编织功能的增强型单针筒提花丝袜机,其特点是结构更简单、市场适应性更强。采用独立抽风机或中央抽风系统进行织物牵拉,配备抗扭装置,针筒转动用伺服电机直接驱动以减少传动链及传动误差。
  由步进马达控制生克眉毛以及控制针筒升降,可产生不同疏密、同步加压润滑油用以润滑织针、生克和选针片,电脑控制袜子的制作全过程、款式和品质。该机可使用合成纤维、人造纤维以及裸氨纶和包覆纱等原料生产丝袜产品,主要生产短袜、长统袜、连裤袜等袜子类型。
  “CIXING” brand GE04T12 type high speed hosiery machine (silk stocking) is a intensified computerized 4-feed woven single cylinder pattern silk stockings machine developed after type GE04P12, which is characterized by a much simple structure and more stronger market popularity . It adopts an independent exhaust fan or central exhaust system fabric stretch and torsion device. The needle cylinder rotation servo motor is directly driven to reduce transmission chain and errors.
The ne

edle cylinder lifting and sinkers controlled by the stepper motor can have a different density to put pressure on lubricant for the lubrication of needles, sinker and selection pieces. The whole production, style and quality of silk stocking are controlled by computer. This machine can use synthetic fibers, artificial fibers and bare spandex and wrap yarn to produce stocking products, including socks, long stockings and pantistockings.

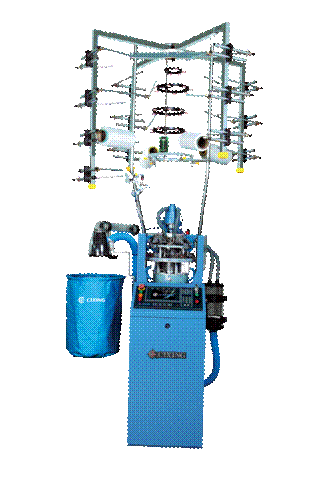

如图:


技术参数PARAMETER
  筒径:4”??? Diameter of spinning can: 4”
  机号:32???? Knitting gauge: 32G
  针数:400针? Needle number:400 needles
  编织系统:4路 Knitting system: 4 feeds
  额定功率:2.3KW? Rated power: 2.3KW
  额定电压:380V? Rated voltage: 3 phase 380V
  额定电流:8.5A ?Rated current: 8.5A
  花型输入方式:USB接口 Pattern input mode: USB interface
  选针器:每

路一个16段电子选针器,可实现四路选针。
  Actuator: Each feed with a 16-sections actuator for 4-feed needle selection.
  最高转速:800RPM? Maximum speed; 800RPM
  密度调节:分为针筒、密度三角、生克三角三个部分,对织物进行密度调节。
  Stitch density control: The stitch density is divided into needle cylinder, quality cam and sinker cam for the adjustment of fabric stitch density.
  织机功能:不同选择的浮线橡胶或所有织针成全编织状态。可编织平纹,网眼,提花等组织。
  Knitting machine function: May select different float rubber or knitted by all needles, which can knit the plain, mesh and jacquard patterns.


展台照片:



1  2  3
