HP2-52C 12G

宁波慈星股份有限公司

时间:2011年07月15日   来源:

HP2-52C 12G
宁波慈星股份有限公司

中文

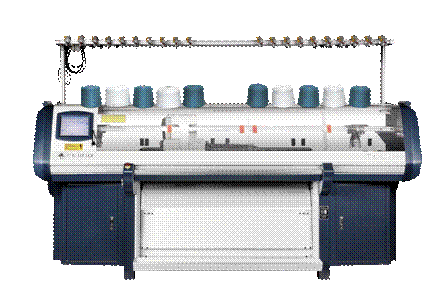

HP2-52C 12G 如图:


  单机头双系统机型。此机型配备了先进的起底板装置和切夹纱装置。通过分段控制,可调节的牵拉转速,满足各种不同织物组织的牵拉需求,完成复杂花型的编织工作。
  配合两侧的切夹纱装置,有效的减少了纱线的浪费,提高了生产效率。
  机器具备全新的控制系统,可升级至自动编排32把纱嘴的花型,并同时自动调整这些纱嘴的编织停放位置而不会出现任何问题。
  系统可以完成在同一行中多把纱嘴的合并编织工作,不但提高了生产效率,而且同时也完成了诸如嵌花和织可穿等复杂花型的编织工作。
  此机型还具备动态线圈密度功能,可以使密度马达在花型的同一行编织过程中,调节线圈密度的大小。同时具备的动态机器速度功能,可以机头在花型的同一行编织过程中改变它的运行速度。这项重要的创新功能,使得生产时间减少了20%。
  全新的控制系统可以在共用一个服务器的前提下,在各机台之间建立网络连接。利用这项功能,我们就可以在机器间进行花型的传输和共享,以及查阅各机台生产控制的数据报告。

机器型型

HP2-52C

针距

12 针

针数/幅宽

624 针/52 英寸

机器速度

1.2米/秒
因针数和编织条件而有不同,多段可调节速度,有256段可编程速度。
动态机器速度 在花型的同一行编织过程中,可改变机器的编织速度。

线圈密度

256段电子控制,采用细分技术;步进马达控制调节密度。
动态线圈密度 在花型的同一个系统的编织过程中,可改变线圈的编织密度。
线圈编码器控制

系统 通过线圈密度的自动调整功能,可大大提高产品质量。
通过此项功能,即便使用双系统编织或是更换不同颜色的纱线,我们都可以做到织物线圈密度始终如一的高品质产品。

摇床

马达驱动,最大2英寸,于任意位置摇1/2和1/4针。

编织系统

单机头双系统。

翻针

可同时前翻后和后翻前,不受机头方向影响,分针编织.

沉降片

步进电机可调节活动沉降片,可根据不同的织物进行调整,达到多种收针和放针效果。

选针器

8 段电子选针器

起底板装置

起底板装置配合切夹纱装置,起底板的活动释放功能,使得复合针完成挂纱及脱圈等动作,有效地实现其功能和效果。

牵拉装置

起底板和罗拉装置,256段自动控制,分段调节。

送纱装置

滚筒送纱装置,精确控制纱线的张力,确保整体织片的质量一致性。

纱嘴

系统可以在每把轨道上自动编排4把纱嘴。共32把纱嘴。
自动调整纱嘴位置 系统可以在机器上自动调整纱嘴编织时的停放位置。通过此项功能,纱嘴可以时刻紧随在织物的两边而不需做任何复杂的调整。基于这个特性,使我们可以在机器花型参数的调整上节省大量的时间,特别是一些复杂的花型。
最优化的机器系统合并功能 系统能够在同一行中完成多把纱嘴的编织工作,不但提高了生产效率,而且同时也完成了诸如嵌花和织可穿等复杂花型的编织工作。

自动停车装置

断纱、纱结、卷布、撞针、件数完成、超负荷、程序错误等均自动停车。

传动装置

皮带传动,交流电伺

服马达控制。

安全装置

全机覆盖减低噪音和防尘,护盖附有停车感应器,紧急停车,切断电源装置,指示灯。

资料输入

通过U盘? 电脑连接输入资料。
联网工作和遥控技术 通过共用一个服务器,我们可以在多台机器之间建立网络连接。利用这项功能,我们就可以在机器间进行花型的传输和共享,以及查阅各机台生产控制的数据报告。

控制系统

屏幕采用LCD工业显示器,触摸屏图形化界面,传输方式采用以及网络,系统扩展内存达2G,可用时存入大量花型文件,并可根据生产需要随时调出使用。
监控画面:可显示各种工作参数和正在编织的度目值,并在机器运转时随时进行调整,最大限度方便操作及节约时间。
系统同时还具备自动调整纱嘴位置功能,编织系统合并功能,动态线圈密度功能以及动态机器速度等功能。配合全新智能的打版软件,轻松快捷的完成嵌花、织可穿以及复杂织物组织的生产工作。
???

机器尺寸及重量

体积:长*宽*高2963 * 940 * 2010毫米
净重:1225公斤

电源装置

电压:AC 220V? 频率: 50HZ? 功率:1.2KW

英文
HP2-52C 12G
Single carrige and double system models. This model is equipped with advanced devices of yarn cutting and comb. By segment control, adjustable roller speed, to meet a variety of different fabri

c take-down needs, complex patterns of weaving.
work with comb device each other, effectively reducing yarn waste, improve production efficiency.
With new control system, machine can be upgraded to processing 32 yarnfeeders pattern automatically, in every moment, all the yarn carriers close to the fabric, without having any crossing problem.
The machine's systems can work with more yarn-carriers at the same time, this is very important to have higher productivity and allow complicate intarsia and Full-body pattern making.
This machine have the Dynamic Stitch function, allows to modify the stitch tension of the fabric during the same row of pattern and Dynamic Speed function that makes possible the machine carriage speed-changing in the same row of the pattern, this impor
tant innovation reduce the production time up to 20%.
With new control system is possible also interconnection between all the machines, and the connection of the machines with a server. In this way we have the possibility to share the pattern files and visualize a report for the production control.

Machine model

HP2-52C

Gauge

12 gauge

Needles/width

624 needles/52 inch

Machine speed

1.2m/s
Needles and knitting for the different conditions, multi-adjustable speed, with 256 programmable speed.
Dynamic Speed This function makes possible the machine carriage speed-changing in the same row of the pattern.

Stitch density

256 electronic control, the use of subdivision; stepper motor ad

just the density control.
Dynamic Stitch This function allows to modify the stitch tension of the fabric during the same row of pattern.
Encoder control stitch This function allows increasing the quality of the production with automatic stitch tension adjustment. With this function we can have? a very high quality of the fabrics also with double system production and have the same length of fabrics even if we change the color of the yarn.

Racking

Motor drive, maximum 2-inch, at any location to move1/2 and 1 / 4-needle.

Knitting system

Double system and single carriage

Loop transfer

Front and back transfer at same time, independent of carriage direction, split knitting.

Sinker

Stepper mot

or can regulate the activities of sinker can be adjusted according to different fabrics, to release a variety of stitches and needles effect.

Needle selector

8 electronic needle device

Comb device

comb devices and yarn cutting device, release from active principle of comb installations, so that the effective closure of the compound needle hanging off the yarn to achieve its function and effects.

Fabric take-down

Main and auxiliary rollers, comb, 256 automatic control, sub-regulation

Yarn feeding device

Roller yarn feeding device, precise control of the yarn tension, to ensure consistency of the overall quality of fabric.

Yarn feeder

The machine can manage in automatic way 4 yarn

feeder for each bar: totally 32 yarn-carriers.
Automatic management of Yarn feeder. This automatism allows the managing in automatic way of the position of yarn feeder. In this way we have, in every moment, all the yarn feeder close to the fabric, without having any crossing problem. With this feature we register a big time saving during the setting of the pattern in machine, especially in very complex samples.
Optimized management of the machine systems. The machine's systems can work with more yarn feeder at the same time, this is very important to have higher productivity and allow complicate intarsia and full body pattern making.

Automatic stopping

Machine will stop automatically when the yarn broken, yarn knot, fabric roll, need

le crash, fabric finished, overload, and program error, etc.

Transmission

Belt drive, AC servo motor control.

Safety devices

Coverage of the whole machine to reduce noise and dust, cover with parking sensors, emergency stop, cut off the power supply unit, the light

Data entry

Input data through the Usb Device
Networking and remote control. This function allow the interconnection between all the machines, and the connection of the machines with a server. In this way we have the possibility to share the pattern files and visualize a report for the production control.

Control system

Screen using LCD industrial monitors, touch screen graphical interface, and network transmission using the system of

extended memory up to 2G, available files stored in a large number of patterns, and can recall at any time in accordance with production needs.? Monitor screen: You can display various operating parameters and values ??, and adjust at any time during the machine running , to maximize convenience and save time operation.
With new function of Automatic management of Yarn feeder, Optimized management of the machine systems, Dynamic Stitch, Dynamic speed and the complete integration with graphic software allow to produce in easy way the most complex structured, intarsia Full body Pattern.
???

Machine size and weight

Size: L * W * H 2963 * 940 * 2010mm
Net Weight: 1225kg

Power

Voltage: AC 220V
Frequency:

50HZ? -? Power: 1.2KW

展台照片:
