FBT306推杆式针梳机FBT306 pusher gilling machine introduction,如图:
产品用途:
Application:
FBT306针梳机主要供毛纺工程的制条之用。其主要作用是将前道工序加工后的条子,通过混条、梳理、牵伸工作逐步使纤维伸直平行、排列整齐,提高均匀度,以制成结构比较完善,适合于后道工序加工的条子。
FBT306 gilling machine is applied to make yarns for the weaving industry. Its main functions are: the melange, combing and extending of the yarn produced in the former procedure; to gradually keep the fiber straight, parallel, aligned; to improve the degree of evenness; to make yarns with complete structure, suitable for next procedure processing.
机器特点:
Machine Features:
1.推杆式梳箱,平均每分钟5500次落针速度,针板最高落针速度为6500次。
1. Pusher gill box: average faller drop:5,500 per minute, Maximum faller drop: 6,500 per minute.
2.前罗拉为品字型排列,皮辊加压采用气动控制,弹簧加压,操作简单,加压稳定。
2. The front rollers are arranged as triangle, the top-roller is pressed
3.自调匀整装置,其信号放大部分采用液压放大,使得铁炮调速迅速准确。整套匀整装置结构设计合理,运转平稳,极少发生机械故障。
3. Autoleveller equalizer: its signal amplification part is hydraulic, thus will make the speed of cone drum be regulated quickly and accurately. The structure of equipment is designed reasonably, so the machine is running smoothly and has less trouble. Applicable fiber range:
使用纤维范围:
Applicable fiber range:
羊毛纤维、亚麻纤维、人造纤维、合成纤维、混纺等。
Wool fiber, linen fiber, artificial fiber, synthetic fiber and blend fiber etc.
主要技术参数:
Main parameters:
1.喂入重量(羊毛基准): 最大350 克/米
1. Input weight (calculated on wool fiber): Max 350gram/meter
2.出条重量(羊毛基准): 最大40克/米
2. Output yarn weight (calculated on wool fiber): max 40 gram/meter
3.喂入型式: 8筒
3. Input mode: 8 cans
5.输出型式: 单球自动生头,自动落球
5. Output mode: single ball automatically generates header, automatically drops
6.输出毛球尺寸: Φ500×500毫米
6. output ball specification: Φ500×500mm
7.出条速度: 最大 350 米/分
7. Output speed: Max350 meter/minute
8.牵伸倍数 : 4.785~11.626
8. Extending multiple: 4.785~11.626
9.前隔距: 30~60毫米
9. Front ratch: 30~60mm
10.梳箱形式: 推杆式
10. Gilling section type: Pusher
11.针板打击次数: 最高6500次/分
11. Gill hitting times: Max 6500 times/min.
12.吹吸风装置: 随机附带
12. Overhead cleaner: shipped with the machine
13.自调匀整装置: 机械式,重不匀 ≤ 1%
13. Auto leveler: Mechanical type, Weight Unevenness ≤ 1%
14.标准附属装置: 梳箱自动加油装置
14. Standard auxiliary attachment: auto lubricant filling device for gilling
15.选配附属装置: 和毛油装置
15. Optional auxiliary attachment: wool lubricant
16.驱动电动机: 主电机4千瓦
推球电机0.25千瓦
吸尘电机1.1千瓦
16. Driven motors: main motor 4KW,
Ball pushing motor: 0.25KW
Dust suction motor: 1.1KW
17.压缩空气: 0.6兆帕(6公斤/平方厘米)
17. Compressed air:0.6Mpa (0.6kg/mm2)
18.占地面积 (长×宽): 8.3米×3米
18. Flooring space ( L×W): 8.3meter×3meter

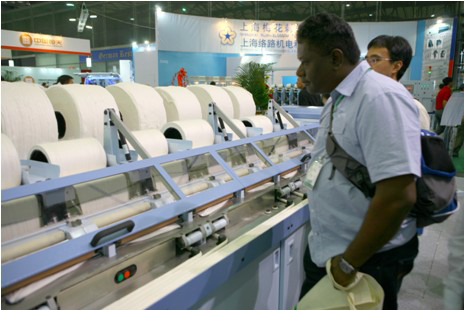

展台照片:
