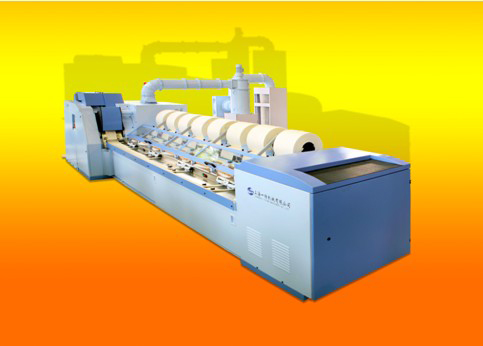

CJ66型棉精梳机Model CJ66 Cotton Combing Machine Introduction,如图:
产品用途:
Application:
本机用于棉精梳工艺,将小卷制成精梳棉条。经精梳后棉条纤维中的短绒、棉结、杂质与纤维疵点得到进一步的清除,提高纤维的伸直平行度以及外观光泽度,从而提高成纱品质。
It is designed for cotton combing, making combed cotton yarns from small coils. After combing, the flock powder, neps, impurities and fiber flaws are further eliminated. It improves the yarn extending parallelism and surface glossiness of yarns and thus improves the finished yarn quality.
机器特点:
Machine Feature:
1、拥有自主知识产权,集自主创新和引进技术为一体,形成自己的自主知识产权,拥有有效的发明专利四项,实用新型专利六项。
1. With independent intellectual property rights, integrated with independent innovation and imported technology, 4 patents of invention and 6 patents of utility model are applied successfully for this machine.
2、钳板运动机构优化,减轻了钳板组件重量,降低了高速往复运动惯性力与惯性力矩。
2. The nipper
3、新型的牵伸结构,采用新型三上三下加压力棒的牵伸结构,能最大程度地满足各种牵伸要求。同步带传动结构简单、调节方便。
3. The new type of drafting structure is adopted with the new three-up, three-down pressure rollers, which can meet the various drafting requirements as much as possible. The structure of synchronous belt transmission is simple and can be regulated easily.
主要技术参数:
Main parameters:
1.眼数与眼距: 8眼×470毫米
1. Number of holes and distance between holes: 8 holes×470mm
2.喂入小卷: φ600×300毫米
2. Input small coil: φ600×300mm
3. 适纺原棉长度: 28~38毫米
3. Suitable weaving raw cotton length: 28-38mm
4.机械速度: 最大450钳次/分
4. Mechanical speed: max 450 Nips per Minute
5
6.锡林直径: φ127毫米
6. Diameter of cylinder: φ127mm
7. 毛刷直径: φ115毫米
7. Diameter of comb: φ115mm
8. 分离罗拉直径: φ25毫米
8. Diameter of detaching roller: φ25mm
9.车尾牵伸形式: 三上三下附压力棒曲线牵伸
同步带传动,气动加压。
9. Draft type of machine end:
three-up, three-down attached pressure bar curve drafting
Synchronous belt transmission, pneumatic pressuring
10.罗拉直径: φ35(前)×φ27(中)×φ27(后) 毫米
10. Diameter of roller: φ35(front)×φ27(middle)×φ27(back) mm
11.皮辊直径: φ39毫米
11. Belt roller diameter: φ39mm
12.圈条形式: 单筒单条大卷成形。
12. Coiler type: single bobbin single yarn big coil coiling
13. 驱动电动机: 主电机5.5千瓦
牵伸传动电机1.5千瓦
毛刷电机1.5千瓦
13. Driven motor: main motor 4KW,
15. 占地面积 (长×宽): 约7.3米×1.9米
15. Flooring space ( L×W): about 7.3 meter×1.9meter
展台照片:
