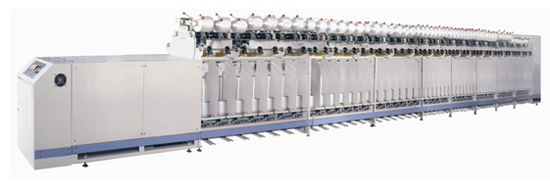

RL398D大卷装倍捻机 LARGE DIAMETER PACKAGE TWO-FOR-ONE TWITER,如图:
特点Features:
用人比原先传统工艺省80%以上,消耗浪费降低80%以上,卷装增大5倍以上;
采用油浴式齿轮箱,机电一体化全PLC控制系统,确保高卷绕速度下的优质成型与运行稳定性;
优质的纱线通道,将纱线损伤降到最低,更适合高品质纱线的要求;
适合各类长纤维纺丝的加捻,具有高速、卷装大、浪费少、用人省等显著优点。
The labor cost is reduced 80%,production cost is reduced 80%,bobbion yarn package is increased to 6 times compared with before;
To apply with the oil bath gearbox,electronic-me-chanical with PLC control system to ensure high speed with excellent widing quality;
It is used to twins a variaty of prolyester filament yarn with gigh speed,large diameter package,less waste and labor cost reduced;
The yarn runing channel desigh is perfect,used for producing high quality yarn with minimum damege the yarn surface.
适用于津布、箱包布、地毯、帆布等化纤长丝类产品的加捻(5~10kg)
Applicable to the twisting of
技术参数:
锭距选择Spindle distance290mm360mm420mm
可加工原料:棉、毛、涤及短纤维的加捻 Process materi Cotton,wool yarns,short staple
操作方式:手动 Operation method Manual
每节锭数Per-section spindle14/12/10
每台节数Per-unit section numb≤10节 ≤10 sections
可纺支数Spinnable count yarn45D~20000D
锭速选择Spindle speed≤10000
捻度选择Twist selection50~1800
卷装尺寸(喂入)Winding bobbin size(φ190,φ210,φ230,φ250)×420
卷绕铜管尺寸Winding bobbin sise6”~10”
卷装重量Package weight5~10kg
卷绕速度Winding speed≤100m/min
锭子选择Spindle selectionφ196,φ220,φ230,φ250,φ330
卷绕铜管Winding bobbin按客户要求、长度最长320mm max.length 320mm on request
卷绕角Winding angle10°、14°47’、16°36’、18°41’、20°07&r
动力配置Driving method变频控制,标准型22kw(可用采双电机)frequency invrtor control,Standard model 22kw(double modlel 22kw(double motors can be used)
标准锭数Standard spindle number1129680

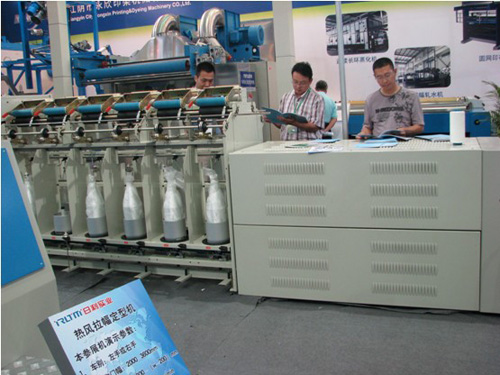

展台照片:
