新昌日利RL500转杯纺纱机

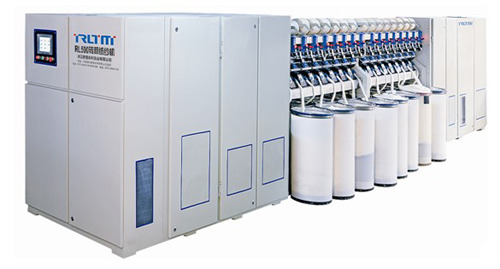

RL500转杯纺纱机 ROTARY CUP YATN-SPINNING MACHINE，如图：
特点Features：
- 本机采用新型的抽气式纺纱纱器，纺杯最高转速达到100000r/min；
- 采用新型纺纱器，无需任何工具，却可清洁、拆装纺纱器；
- 卷装成型可为平行筒子或选用锥形筒子；
- 配有半自动接头装置，提高接头效率；
- 可配有落筒吸纱装置，在满纱落筒时产生留尾纱，减少再次升头时间；
- 采用闭环控制技术及智能化电控系统，使用多路变频调速系统，达到更高的控制精度；
- 良好的操作界面，可实时监控和查看各项工艺参数；
- 为提高成纱质量，可配置电子清纱装置（选配）；
- 纱线上蜡，可配置上蜡装置（选配）。
This machine applies a new type air-bleed yarn spinner,the maximum speed of the cup rotation can reach 100000 rpm;
Applids a new-type spinner which can be cleaned,assembly without any tools;
The winding formation may be in parallel bobbin or conic bobbin for selection;
Equipped with the semi-automatic piecing device to improve the piecing efficiency;
May have the doffing yarn-absorption to give the tailing yarns when the bobbin is full during the doffing to shorten the t
Applies the closed ring control technique and intelligence electric control technique and intelligence electric control system,uses a multi-line frequency conversion speed-regulating system to achieve a higher precision of control;
Applies the closed ring control technique and intlligence electric control system,uses amulti-line frequency conversion speed-regulating system to achieve achieve a higher precision of control;
A good operator’s viewing area is provided,allowing to monitor and observe the actual technical parameters of the spinning;
May mount up and e-yarn waste clearing device for improve the finished yarn quality(optional);
May mount up a yarn-waxing device to wax the max the yarns(optional).
技术参数：
适纺线密度Count4.5~120 tex
适纺线长度Yarn length ﹤40
头距Gauge230mm
每台头数Per spindle192,208,224,240
转杯直径Rotor diameterφ36,φ42,φ48mm
转杯转速Rotor speed50000~100000r/min
分梳辊转速Combing speed5500~9500r/min
捻度范围Twist range220~2250T/M
牵伸倍数Draught range35~250
卷绕速度Winding speed﹤160m/min
平铜管尺寸Dimension of tubeφ54×170mm
锥管Cone tube2°,4°20’
条筒尺寸Can dimensionφ400×900mm φ350×900mm
总排气量Total air exhaust5000m3/h
总额定功率Total power75kw

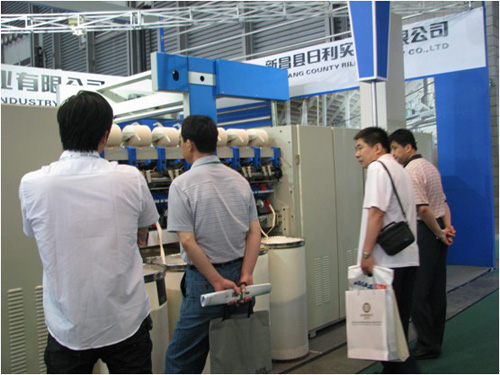

展台照片：
